RS PRO Brass Male Pneumatic Quick Connect Coupling, 6mm Hose Barb, Муфта

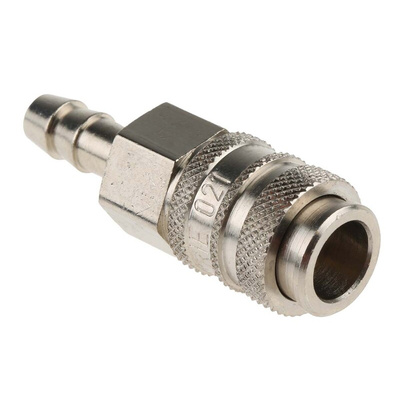

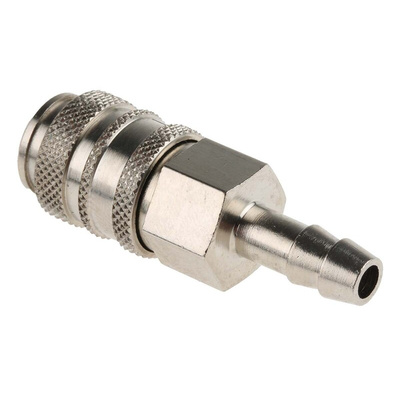

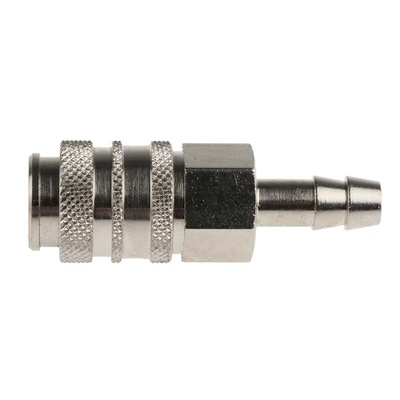

RS PRO Pneumatic Quick Connect Coupling Brass 6mm Hose Barb

Join up sections of pipe, tube or hose in pressurised gas systems with these miniature brass pattern connectors. Connections can be set up quickly and simply with these pneumatic quick-connect couplings.

The nickel-plated couplings have 6 mm hose barb fittings, letting you connect sections with minimal effort. Their nitrile rubber seal helps guarantee a tight fit, which is essential in maintaining gas pressure in pneumatic systems without having to use additional, possibly corrosive or contaminating sealants. With small body dimensions, the connectors have a high flow rate and a low-pressure drop, meaning they create precise connections. Extremely reliable, they operate effectively between temperatures of -20°C to +100°C and at up to 35 bars of pressure.

Pneumatic quick-connect coupling connectors are used in a range of pneumatic systems and can be found in workshops in small air tools.

Features and Benefits

• Connection standards of Camozzi, Legris, Rectus 21 and Rectus 90
• Male coupling
• Hose barb connection of 6 mm
• Maximum operating pressure of 35 bar
• Made of brass with a nickel-plated finish
• Nitrile rubber seal
• Operating temperature range of -20°C to +100°C
