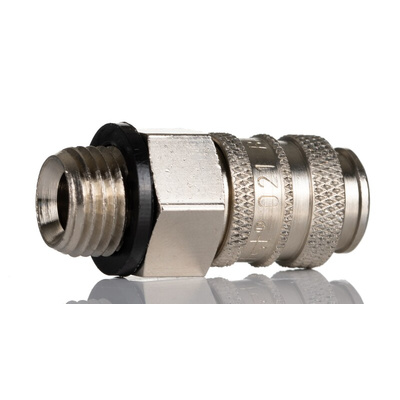

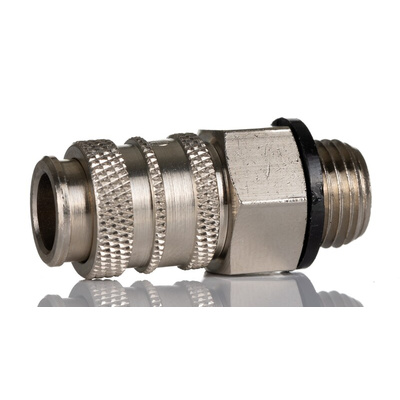

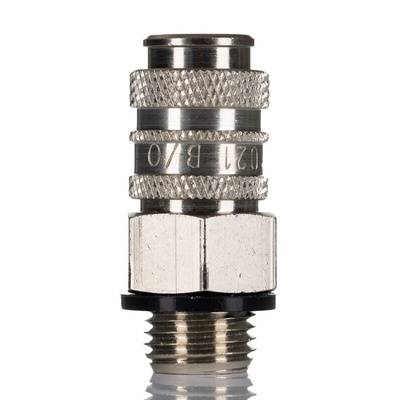

RS PRO Brass Male Pneumatic Quick Connect Coupling, G 1/4 Male Threaded, Муфта

RS PRO Pneumatic Quick Connect Coupling Brass 1/4 in Threaded

These miniature brass pattern connectors join up sections of pipe, tube or hose in pressurised gas systems. With a pneumatic quick-connect coupling, connections can be set up quickly and easily.

The connectors have small body dimensions, a high flow rate and a low pressure drop, meaning they create precise connections. Extremely reliable, they can operate effectively in a temperature range of -20°C to 100°C and at up to 35 bars of pressure. The nickel-plated couplings have threaded fittings with a 1/4-inch thread size. This allows you to connect sections with minimal effort. Their nitrile rubber seal helps ensure the fit is tight. This is essential to maintain gas pressure in pneumatic systems without having to use additional sealants, which can be corrosive or contaminating.

Found in machinery as varied as dental equipment, robotics and small air tools, pneumatic quick-connect coupling connectors are suitable for a broad range of pneumatic systems.

Features and Benefits

• Camozzi, Legris, Rectus 21 and Rectus 90 connection types
• Male coupling gender
• G 1/4 male, threaded connection
• 1/4-inch thread size
• G thread standard
• Maximum operating pressure of 35 bar
• Made of brass with a nickel-plated finish
• Nitrile rubber seal
• Minimum operating temperature of -20°C
• Maximum operating temperature of 100°C
