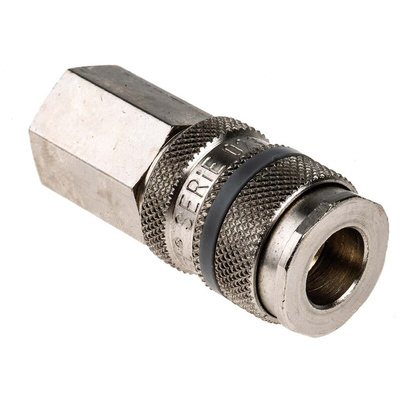

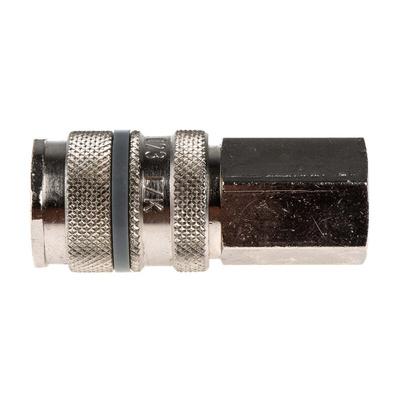

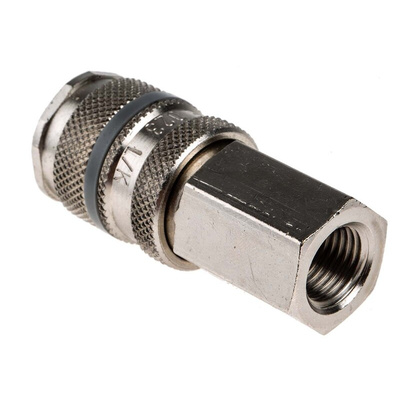

RS PRO Brass Female Pneumatic Quick Connect Coupling, G 1/4 Female Threaded, Муфта

RS PRO Pneumatic Quick Connect Coupling Brass 1/4 in Threaded

Use this pneumatic quick connect coupling to attach together tubes, pipes and hoses quickly and efficiently. Part of the trusted RS PRO range, this type of coupler is used in industrial applications where high-flow performance and minimal pressure loss are critical, including laboratory equipment.

This Series 23, female threaded coupling comes in a G-standard quarter-inch thread size. It complies with a wide selection of standard connectors, including CEJN 310, Hansen 3000 and Rectus 23 series connectors. Using the quick-connect system, it's able to create a fast join with a single shut off.

The coupler's body and sleeve are made from brass with a nickel-plating, ensuring corrosion resistance and a long lifetime. The nitrile rubber seal provides protection, not just from water but also oil, gasoline and some hydraulic fluids.

This quality RS PRO product has been stringently tested for safety and reliability and is RoHS-compliant for restricted hazardous substances.

Features and Benefits

• Pneumatic quick connect coupling
• Manufacturer Series 23
• Female coupling and female threaded connection
• G-standard quarter-inch thread size
• Tested to work at temperatures between -20°C and +100°C
• Maximum operating pressure of 35 bar
• Nitrile rubber seal protects against contamination
• Made from brass with nickel plating
• Connection compliant with CEJN 310, Forster, Hansen 3000, ISO 6150 B, Parker Legris 1/4, Rectus 23, TST 024 Atlas Copco QIC 08 and US MIL 4109 1/4 standards for safety and quality
• RoHS compliant for restricted hazardous substances
• Meets Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
