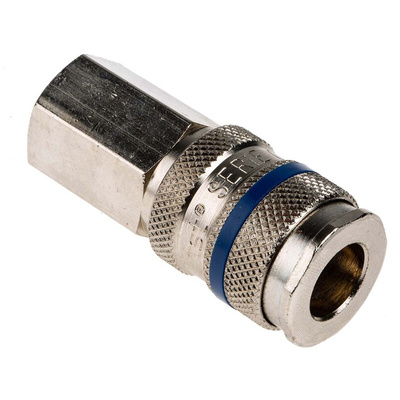

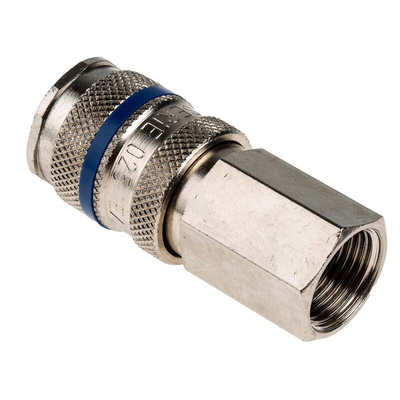

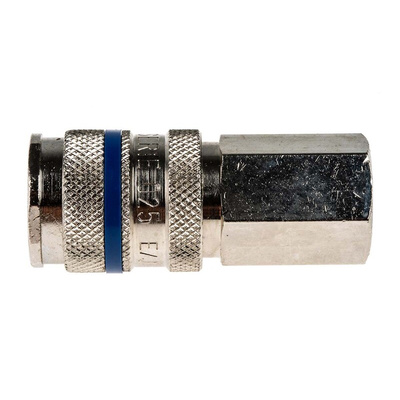

RS PRO Steel Female Pneumatic Quick Connect Coupling, G 3/8 Female Threaded, Муфта

RS PRO Pneumatic Quick Connect Coupling Steel 3/8 in Threaded

If you need an easy and reliable way to connect pipes and tubes within pneumatic systems, this pneumatic quick-connect coupling offers a 3/8-inch female threaded connection to keep gas pressures steady.

With a nitrile rubber seal and a small size that keeps flow rate high and pressure low, this product provides a tight fit and maintains the pressure of your system. It's versatile enough to operate at temperatures between -20°C and +100°C and at a pressure of up to 35 bar.

As part of the RS PRO range, it's also designed for durability and safety. It has a nickel-plated steel design for protection against corrosion, as well as a shut-off valve so you can safely separate the body from the coupling.

This pneumatic quick-connect coupling is interchangeable with the ULTRA-FLO series and is useful for multiple applications. You'll find it in pneumatic systems ranging from dental tools to robotics.

Features and Benefits

• CEJN 320, JWL 520, JWL 530, Legris, Parker PEF, Rectus 25, Rectus 26, TST 026 connection standard
• 3/8-inch female coupling thread
• G thread standard
• Nickel-plated steel body
• Nitrile rubber seal
• Maximum operating pressure of 35 bar
• Minimum operating temperature of -20°C
• Maximum operating temperature of +100°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
