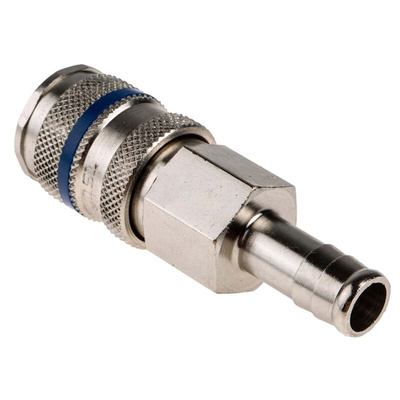

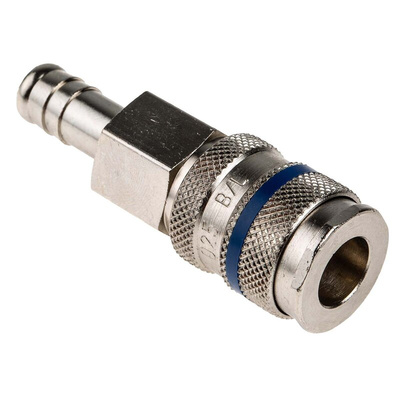

RS PRO Steel Male Pneumatic Quick Connect Coupling, 10mm Hose Barb, Муфта

RS PRO Pneumatic Quick Connect Coupling Steel 10mm Hose Barb

Set up pneumatic equipment and machinery quickly and easily with these couplings for pressurised gas systems. The pneumatic quick-connect couplings are a highly effective choice for maintaining pressure.

Versatile and reliable, they function at up to 35 bars of pressure and between temperatures of -20°C to +100°C. Their 10 mm hose barb fittings can link up sections of pipe, tube or hose simply and an extra-tight fit is achieved with the nitrile rubber seal. It maintains pressure without the need for potentially contaminating sealants. Dependable and precise connections are achieved thanks to the couplings' small dimensions, a high flow rate and a low-pressure drop.

The connectors are interchangeable with the ULTRA-FLO series and come with a nickel-plated finish for durability and protection. A shut-off valve lets you safely separate the coupling from the main body.

From robotic devices to dental equipment, these pneumatic quick-connect coupling connectors are used in a broad range of pneumatic systems.

Features and Benefits

• Connection standards of CEJN 320, JWL 520, JWL 530, Parker PEF, Rectus 25, Rectus 26, TST 026
• Male coupling
• Hose barb connection of 10 mm
• Made of steel with a nickel-plated finish
• Nitrile rubber seal
• Operating temperature range of -20°C to +100°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
