RS PRO Steel Male Pneumatic Quick Connect Coupling, 8mm Hose Barb, Муфта

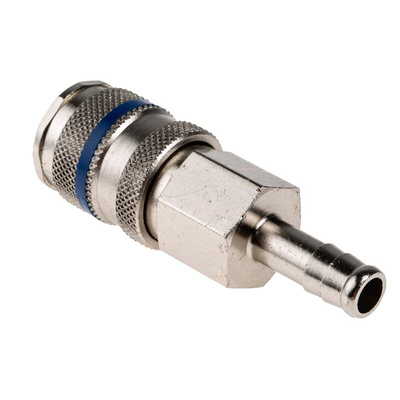

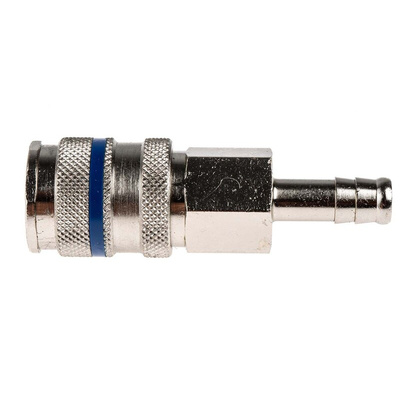

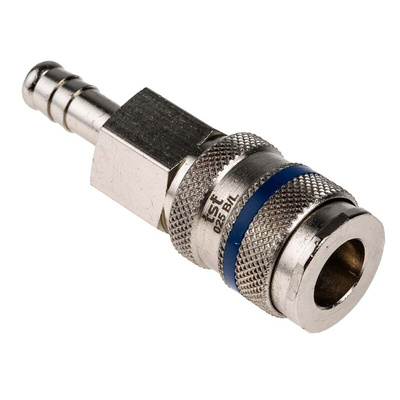

RS PRO Pneumatic Quick Connect Coupling Steel 8mm Hose Barb

This pneumatic quick-connect coupling from the RS PRO range allows you to maintain the pressure of pneumatic systems. With an 8 mm hose barb connection, it's useful for connecting sections of soft tubing in pressurised gas systems.

This coupling is made from durable nickel-plated steel for corrosion resistance and has a secure nitrile rubber seal to effectively maintain pressure. It's suitable for use across a temperature range of -20°C to +100°C, and it's effective at a pressure of up to 35 bar. With a shut-off valve, it allows you to safely disconnect the body from the coupling. It's also interchangeable with similar couplings and features a high flow rate for more effective connections.

The pneumatic quick-connect coupling is useful for a number of pneumatic applications, such as dentistry equipment and robotics.

Features and Benefits

• CEJN 320, JWL 520, JWL 530, Legris, Parker PEF, Rectus 25, Rectus 26, TST 026 connection standard
• Male thread gender
• 8 mm hose barb connection
• Nitrile rubber seal
• Nickel-plated steel construction
• Interchangeable with the ULTRA-FLO series
• Minimum operating temperature of -20°C
• Maximum operating temperature of +100°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
