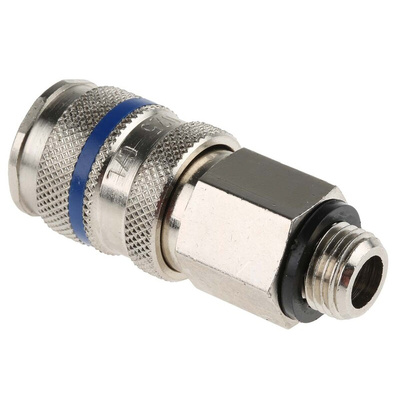

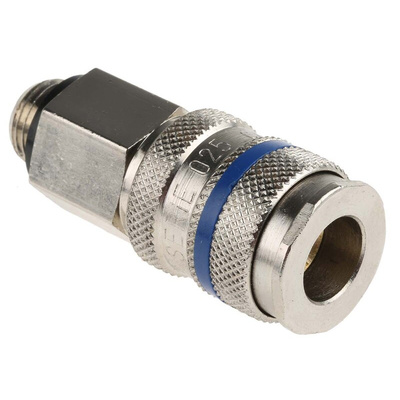

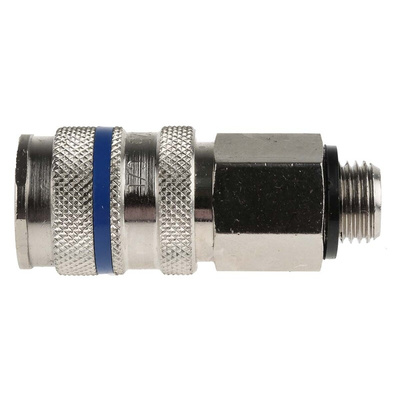

RS PRO Brass, Steel Male Pneumatic Quick Connect Coupling, G 1/4 Male Threaded, Муфта

RS PRO Pneumatic Quick Connect Coupling Brass, Steel 1/4 in Threaded

Connect sections in pressurised gas systems with these pneumatic quick-connect couplings. The connectors from RS PRO are highly effective at maintaining pressure and setting up pneumatic equipment quickly and easily.

These couplings function in temperatures ranging from -20°C to +100°C and at up to 35 bars of pressure, so they're reliable and adaptable. Small dimensions, a high flow rate and a low-pressure drop ensure strong and precise connections. The 1/2-inch threaded fittings can join up sections of pipe, tube or hose simply. Maintain pressure, without the need for potentially corrosive sealants, with the extra-tight fit provided by the nitrile rubber seal.

The connectors are interchangeable with the ULTRA-FLO series and come with a nickel-plated finish for durability and protection. Safe separation of the coupling from the main body is achieved by a shut-off valve.

This type of quick-connect coupling is found in a range of pneumatic systems such as those used in dental surgeries.

Features and Benefits

• Connection standards of CEJN 320, JWL 520, JWL 530, Parker PEF, Rectus 25, Rectus 26, TST 026
• Male coupling
• G 1/4-inch male threaded
• Made of brass and steel with a nickel-plated finish
• Nitrile rubber seal
• Operating temperature range of -20°C to +100°C
