RS PRO Brass Female Pneumatic Quick Connect Coupling, G 1/4 Female Threaded, Муфта

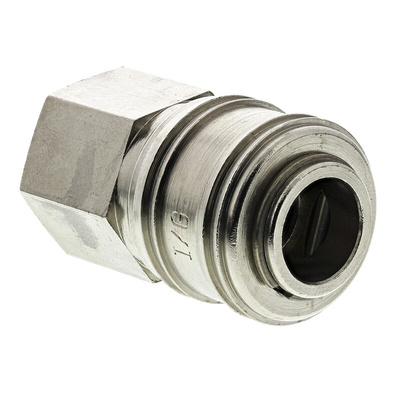

RS PRO Brass Female Pneumatic Quick Connect Coupling, G 1/4 Female Threaded

Need an effective way to join pneumatic lines? This RS PRO coupling offers a compact solution. Its quick-connect feature means you can connect and disconnect with one hand, making it easy to use. It seals automatically to prevent air leaks or pressure loss.The coupling is designed for use on the supply side of the connection. A built-in valve stops the airflow when disconnecting, allowing you to remove the connector safely and easily. The 1/4-inch thread on the rear makes it easy to attach to your hose or air supply.This coupling is suitable for flow rates of up to 1000 L/min. This makes it a good choice for tools like impact drivers and nail guns in a garage or workshop.

Features and Benefits

• CEJN 320, JWL 520, JWL 530, Parker PEF, Rectus 25, Rectus 26, TST 026 connection standard


• Female coupling gender


• G 1/4 female threaded connection


• Thread size of 1/4 in


• Brass material


• Nickel-plated finish


• Maximum operating pressure of 35 bar


• Minimum operating temperature of -20°C


• Maximum operating temperature of +100°C


• Nitrile rubber seal material

RS Pro Datasheet
