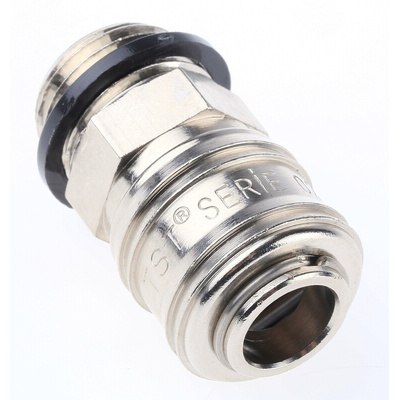

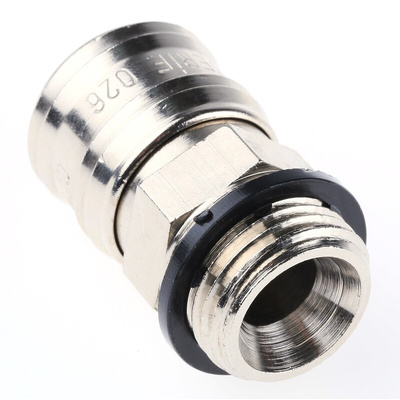

RS PRO Brass Male Pneumatic Quick Connect Coupling, G 1/2 Male Threaded, Муфта

RS PRO Brass Male Pneumatic Quick Connect Coupling, G 1/2 Male Threaded

This RS PRO quick-connect coupling is a compact solution for joining pneumatic lines securely. It allows for one-handed operation and seals automatically to prevent leaks and pressure loss in your pneumatic system. You can use the coupling on the supply side of the connection. The built-in valve stops the flow of air when taking the connector out, allowing you to disconnect safely and easily.Thanks to its compatibility with Rectus 25 or 26 Series parts, the connector is easy to integrate into an existing pneumatic system. It's commonly used in garages and workshops for applications with a flow rate of up to 1000 L/min.

Features and Benefits

• CEJN 320, JWL 520, JWL 530, Parker PEF, Rectus 25, Rectus 26, TST 026 connection standard


• Male coupling gender


• G 1/2 male threaded connection


• Thread size of 1/2 in


• Brass material


• Nickel-plated finish


• Maximum operating pressure of 35 bar


• Minimum operating temperature of -20°C


• Maximum operating temperature of +100°C


• Nitrile rubber seal material

RS Pro Datasheet
