RS PRO Brass Female Pneumatic Quick Connect Coupling, G 1/4 Male Threaded, Муфта

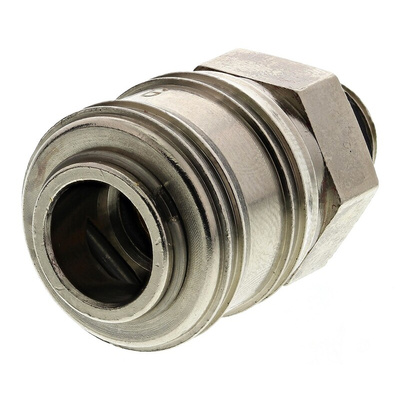

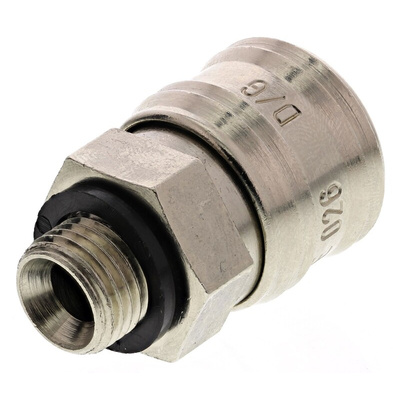

RS PRO Brass Female Pneumatic Quick Connect Coupling, G 1/4 Male Threaded

This quick-connect RS PRO coupling offers one-handed operation for joining pneumatic lines. It automatically seals when you connect or disconnect it, preventing pressure loss and air leaks.The coupling is used on the supply side of the connection. Its built-in valve prevents the flow of air when removing the connector, letting you disconnect it safely and easily. The 1/4-inch thread on its rear allows you to attach it to your hose or air supply.You can use the connector with Rectus Series 26 or 25 parts, making it a good choice for use with existing pneumatic systems. It's used for applications with flow rates of up to 1000 L/min, so it's ideal for use with tools like impact drivers and nail guns in your garage or workshop.

Features and Benefits

• CEJN 320, JWL 520, JWL 530, Parker PEF, Rectus 25, Rectus 26, TST 026 connection standard


• Female coupling gender


• G 1/4 male threaded connection


• Thread size of 1/4 in


• Brass material


• Nickel-plated finish


• Maximum operating pressure of 35 bar


• Minimum operating temperature of -20°C


• Maximum operating temperature of +100°C


• Nitrile rubber seal material

RS Pro Datasheet
