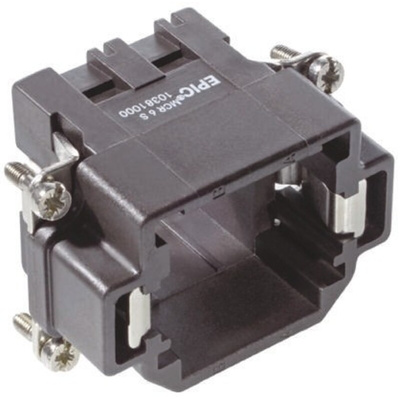

10381700, Epic Contact Frame, MCR Series , For Use With Heavy Duty Power Connectors

MCR Module Frame

Frames can accommodate between 2 and 7 MC modules
Fits into standard H-B sized housings
Both male and female modules can be combined in one frame

MC Modular Range

The Epic MC Modular range is a highly flexible system of inserts that allows unique connector design within the Epic heavy duty industrial connector range. The system allows signal, power and pneumatic connections to be assembled within a single housing by inserting 2,3,5 or 7 modules into the relevant size frames. The inserts come complete with contacts and once the size of the frame has been chosen depending on the number of modules required, the hoods and bases can be picked out from the standard H-B range.

MC Modular System
