RS PRO Internal Micrometer, Микрометр

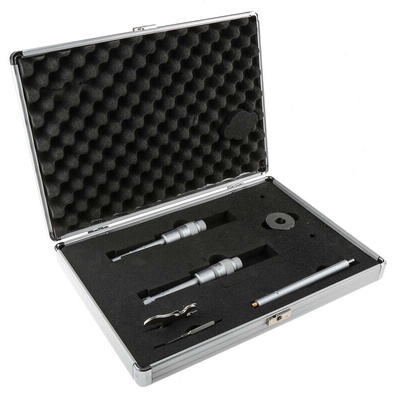

RS 3 Point Bore Micrometer Set

A positive 3-point bore measurement system, supplied with calibration ring gauge and supplied in a storage case.

Ratchet thimble, satin chrome finish
Tungstun carbide anvils
Extension rod for extra deep bore measurement

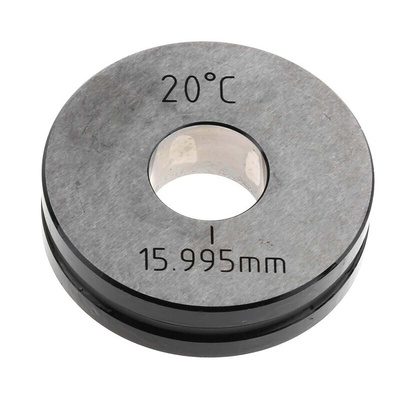

Setting ring gauge (accuracy 0.005mm)
Micrometer resolution 0.005mm

Suitable for bore measurement in the 12 to 20mm

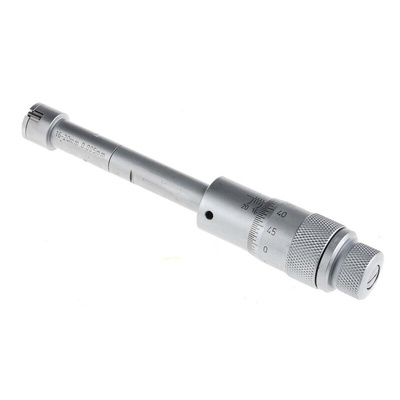

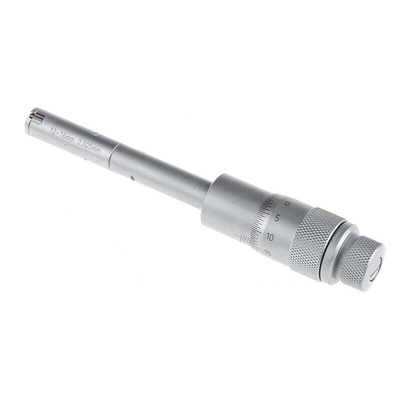

RS PRO Internal Micrometer

This 3-point bore micrometer set is used to measure bore depths between 12 mm and 20 mm. It's particularly suitable for automotive and manufacturing applications where you need to measure the depth of a pipe or cylinder.

The micrometer set features an extension rod for extra-deep bore measurement and a calibration ring gauge to easily adjust the anvils back to zero. The anvils are made of tungsten carbide, which is resistant to impact and corrosion and lasts up to 100 times longer than steel. The thimble also has a satin chrome finish for increased hardness, giving you a durable and long-lasting set.

You'll find this product particularly handy for the automotive industry. It's commonly used to measure the holes in an engine block, ensuring a tight fit for pistons. As part of the RS PRO range, it meets our stringent quality and accuracy standards.

Features and Benefits

• Metric internal micrometer
• Accuracy of ±0.004 mm
• Resolution of 0.001 mm
• Minimum measurement of 12 mm
• Maximum measurement of 20 mm
• No batteries required

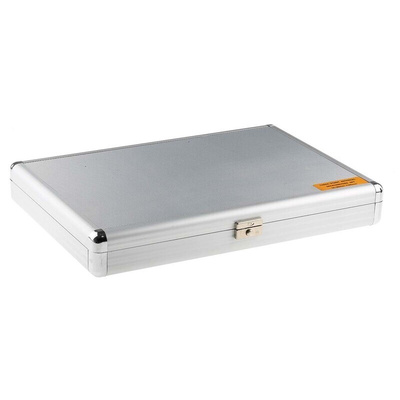

• Supplied in a storage case with a calibration ring gauge

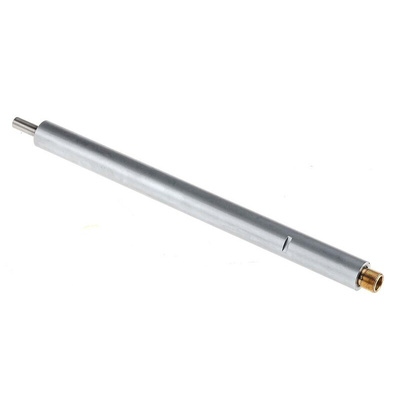

• Extension rod for extra deep bore measurement
• Tungsten carbide anvils
• Thimble with satin chrome finish

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
