DPM 950S-FPSI, Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %, 72 x 40 mm, Вольтметр

19mm 3.5 Digit Meter with Bicolour Alarm Backlight, Lascar DPM 950S-FPSI

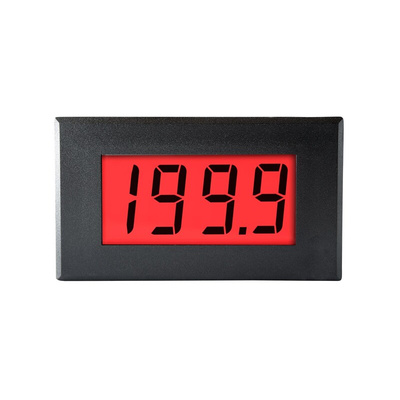

A standard 3.5 digit voltmeter that can be used as a dual colour stop/go display. During standard operation the display is green, however if the reading goes outside a programmable threshold the display will turn red.

200mV FSD
Linearity ±1 count
Auto-zero, auto-polarity
Dual colour backlight with programmable high and low levels (backlight current is 35mA at 5V Nom.)
Open collector outputs that mirror the backlight status
6 way DIP switch and 2 push button set up
16 way IDC cable header
Panel cut-out 40 x 72 mm

Note

Dimensions stated include bezel, module dimensions only are 39 x 71.5 x 11.3mm (excluding pins at 8.4mm).

Supplied with

Mounting bezel / accessories, operating instructions and connector.

LCD 5.5 to 19mm Digit Height

All have an operating temperature range of 0 to 50°C unless specified otherwise.

DPM 950 3½ Digit LCD Module Data Sheet
