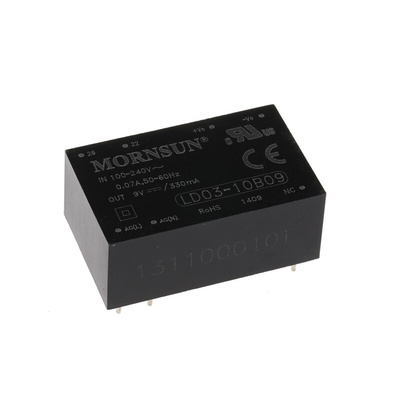

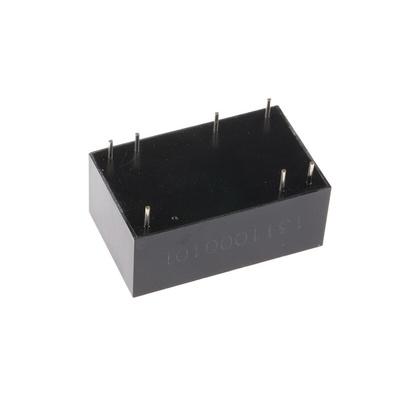

RS PRO Switching Power Supply, 9V dc, 330mA, 3W, 1 Output, 110 → 370 V dc, 85 → 264 V ac Input Voltage, Источник питания

RS 3W, PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply

3W PCB Mount, encapsulated, switch mode AC-DC power supplies with a wide input voltage range of 85 to 264 Vac, high efficiency of up to 78%, high power density and low loss. Typical applications for these PCB mount AC/DC power supplies include industrial and office equipment.

DIP26 plastic case
Safety Class II
AC and DC all in one (input from the same terminal)
High efficiency, high power density
Over voltage, short circuit and over temperature protection
Low loss, green power
No load power consumption ≤0.3W
EMC compliance to EN55022, level A

Standards

IEC60950,EN60950,UL60950

Approvals

UL Listed, file: E235235
