FLZ610 17218100000, Pfannenberg Enclosure Thermo Hygrostat, 40 → 90%RH, 230 V ac/dc, Термогигростат

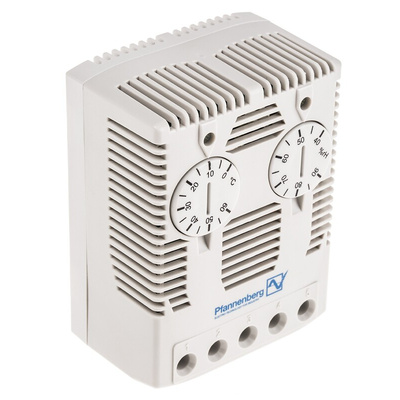

FLZ 610 Hygrostat-thermostat Combination Device

FLZ series hygrostats switch on control cabinet heaters or filterfans when a preset relative humidity is exceeded. The relative humidity is kept above the dew point and the condensation of water on electrical components, and corrosion of unprotected sheet metal, is prevented. The electronic combination device unites in one housing the thermostat and hygrostat, which monitor relative humidity and temperature independently of each other.

Features and Benefits:

• Setting range 40 - 90% RH / 0°C → +60°C
• Switching temperature difference approx 2K+1K/approx 4% RH ± 1%
• Contact resistance <10mΩ
• Operating temperature range -20 → +60°C
• Protection rating IP20
• Screw terminal connection for cable cross-section 0.5 → 2.5mm sq
• Snap fastening for 35mm profile bars according to EN 60715
• Colour RAL 7035

Approvals

UL, cUL

Approvals

UL, cUL

FLZ 600 FLZ 610 Hygrostat and Hygrostat Thermostat Data Sheet
