R4300143A, Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump, 19L/min, 3.1 bar, 12 V dc, Насос

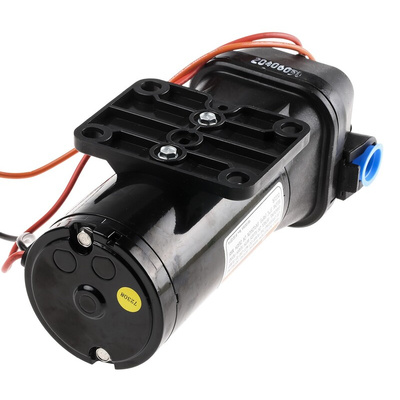

Xylem Flojet Positive Displacement Pump

The Xylem Flojet compact quad diaphragm positive displacement pump is suitable for water and light water-based chemicals. Its maximum flow rate is 19L/min. It has a built-in pressure switch that automatically starts and stops the pump when the discharge valve is opened and closed.

Caution:
Do not use for volatile low flash point solvents or fuels, also unsuitable for flammable liquids or to be used in an explosive atmosphere.

Features and Benefits

The supply voltage rating is 12VDC
Maximum working pressure is 3.1bar
Maximum Fluid temperature is 54°C
Self-priming capability up to 1.5m
Can be located above the liquid level
Compact design and plug-in port fittings make installation easy
Quad diaphragm design eliminates troublesome shaft seal
No metal contact with liquid being pumped
Powerful, permanent magnet motor with a low current draw and long life brushes

Certifications

CE certified
NSF approved

Datasheet
