D3131H5011AR, Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump, 5.3L/min, 4.2 bar, 12 V dc, Насос

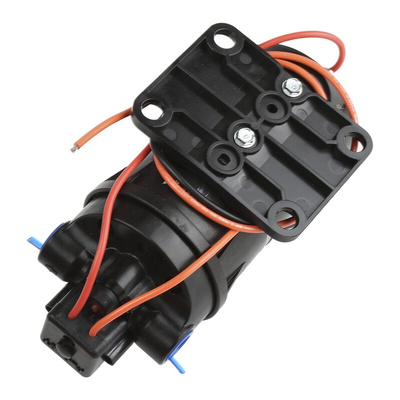

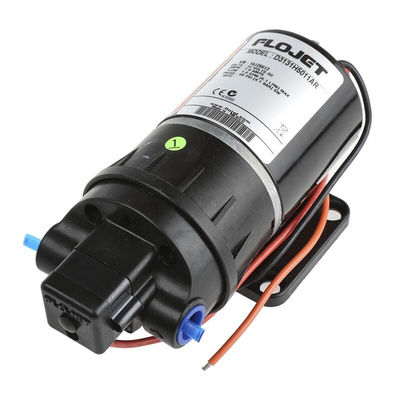

Xylem Flojet Positive Displacement Pump

The Xylem Flojet compact quad diaphragm positive displacement pump is suitable for water and light water-based chemicals. Its maximum flow rate is 5.3L/min. It has a built-in pressure-switch control to running the pump only when needed.

Caution:
Do not use for volatile low flash point solvents or fuels, also unsuitable for flammable liquids or to be used in an explosive atmosphere.

Features and Benefits

The supply voltage rating is 12VDC
Maximum working pressure is 4.2bar
Maximum Fluid temperature is 54°C
Self-priming capability up to 1.5m
Can be located above the liquid level
Handles water-like and viscous liquids up to 250cP
Chemical-resistant
Polypropylene pump head for long life
Internal bypass for excellent performance range
Built in back-flow preventer
heavy-duty ball bearing drive system

Certifications

CE certified
NSF approved
