D3135H7011AR, Xylem Flojet Diaphragm Electric Operated Positive Displacement Pump, 8.1L/min, 7.1 bar, 12 V, Насос

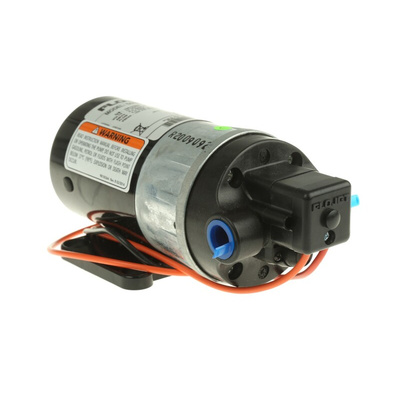

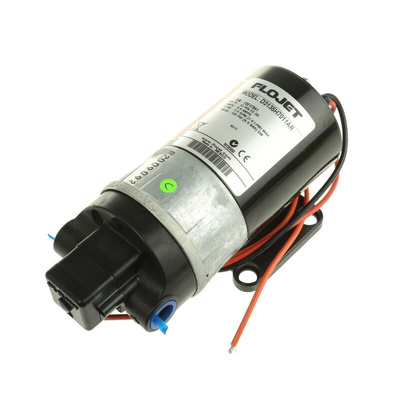

Xylem Flojet Positive Displacement Pump

The Xylem Flojet compact quad diaphragm positive displacement pump is suitable for water and light water-based chemicals. Its maximum flow rate is 8.1L/min. It has a built-in pressure-switch control to running the pump only when needed.

Caution:
Do not use for volatile low flash point solvents or fuels, also un-suitable for flammable liquids or in an explosive atmosphere.

Features and Benefits

The supply voltage rating is 12VDC
Maximum working pressure is 7.1bar
Maximum fluid temperature is 60°C
Self-priming capability up to 1.5m
Can be located above the liquid level
Handles water-like and viscous liquids up to 250 cP
Chemical-resistant
Polypropylene pump head for long life
Internal bypass for excellent performance range
Built in back-flow preventer
heavy-duty ball bearing drive system.

Certifications

CE certified
NSF approved

Datasheet
