T0053364899, Weller Soldering Accessory Soldering Iron Pre Heating Plate, for use with Weller or WHA3000V Hot Air StWHA3000Pations

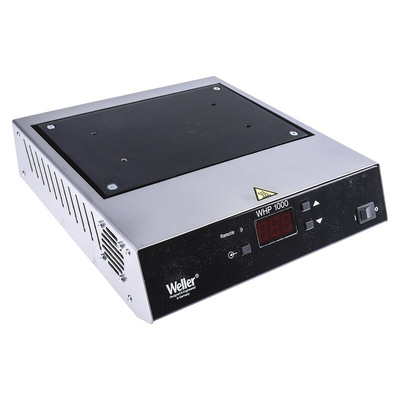

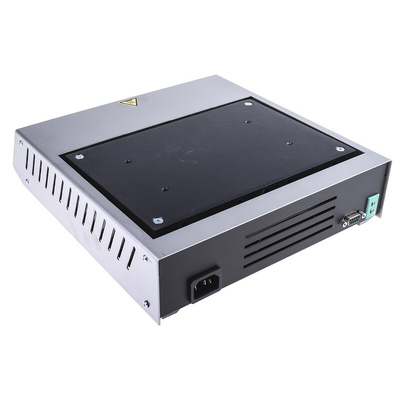

Weller WHP1000 Pre-Heating Plate

Introducing the WHP 1000 pre-heating plate from Weller. A superb device designed to raise the correct working temperature of PCB’s and enable electronic assemblies to be pre-heated prior to repair. Upon inspection, the WHP 1000 offers 4 heating elements each with 250 W of power ideal for use with ceramic and glass boards.

Why is the Pre-Heating Plate important?

Pre-heating plates offer so many benefits such as; components set to the correct working temperature thus ensuring perfect soldering conditions and vastly reduce damage to the PCBs from thermal shock. Ideally, they should be considered as a vital accessory for soldering / de-soldering applications.

Features and Benefits

• 1000 W/ 230 V


• Suited for use with silicon cells


• Ideal for use with ceramic and glass boards


• Allows board's substrate material to be raised to working temperature without risk of thermal shock


• 4 X 250 W heating elements


• Temperature range: 50 °C to 300 °C


• Digitally controlled


• Auto Off and Standby Temperature functions


• Digital temperature display


• Small benchtop footprint


• Stainless steel housing


• ESD safe


• Can be controlled via the WHA 3000P, WHA 3000V hot air station


• Easy Cleaning

Compatibility

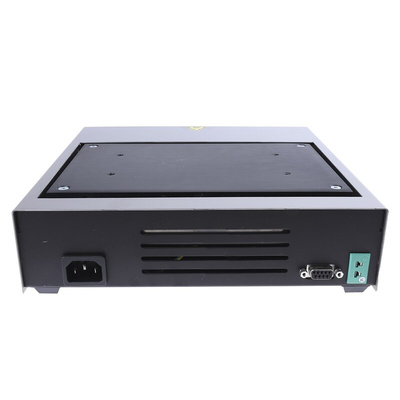

An integrated RS232 interface enables the device to be controlled externally from the Weller WHA 3000P / WHA 3000V hot air station.
Using an insulated thermocouple Type K the temperature can be monitored in specific locations on the board - RS stock no: 443-7967

Technical Data

• Dimensions: W.254 x L.280 x H.70 mm


• Heating plate: 150 x 220 mm

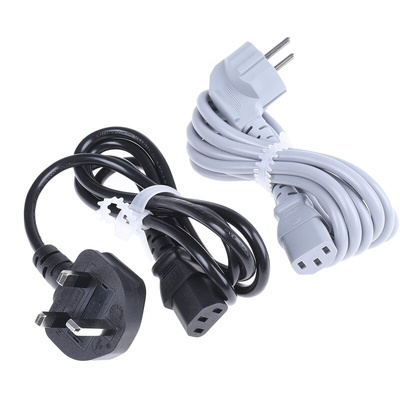

• Mains voltage: 230 V (120 V); 50 Hz (60 Hz)


• Power: 1000 W


• Temperature range: 50°C - 300°C


• Protection class: 1

Typical Applications

Pre-heating plates are the ideal essential accessory for any Desoldering or Soldering Station application. They are typically used in Electrical & Electronic Servicing and Soldering & De-soldering.
