1SVR427034R0000 CP-E 24/5.0, ABB CP-E Switch Mode DIN Rail Power Supply, 90 → 132 V ac, 180 → 264 V ac, 210 → 375V dc ac, dc, Блок питания

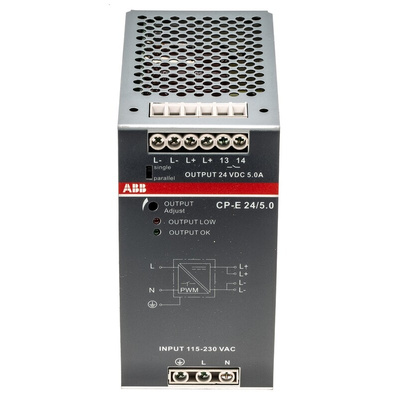

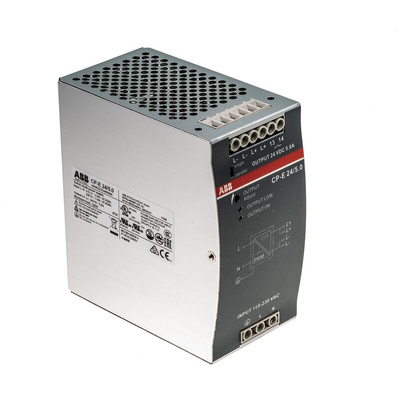

ABB Switch-Mode Power Supply, 1 Output, 120W Power Rating - CP-E Series - 1SVR427034R0000

Easily adjust your voltage output supply with this switch-mode power supply from ABB. It has a front‑face rotary potentiometer that lets you conveniently set its output between 22.5 and 28.5V DC. The versatile unit has two capacitors that ensure safe mains buffering, so it's suitable to use in high-fluctuating networks and battery-powered plants. Free convection cooling means there's no need for a ventilator, which simplifies your system setup. For greater safety, this device is protected against short circuits and current overload.

Features & Benefits

• Wide operating temperature range of -35°C to +70°C for use in harsh conditions
• Includes LEDs for convenient visual status indication
• Low power dissipation for improved electrical efficiency

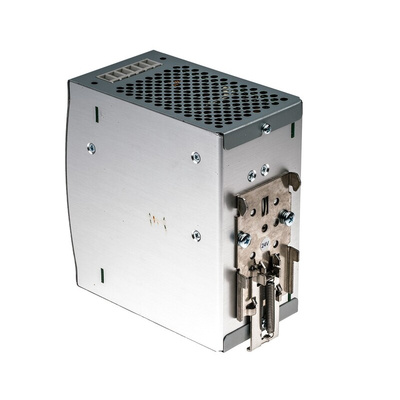

• Quick and easy to snap onto a DIN rail for tool-free assembly

Applications

• Automotive industry
• Paper and pulp mills
• Textile manufacturing
• Robotics

In what position can I mount this power supply?

You should mount this power supply horizontally with the input terminals at the bottom of the device.

Can I connect this unit in series with other power supplies?

Yes, you can conveniently connect this device with up to two other power supply units.

CP-E 24/5.0 Primary switch mode power supply Data Sheet

Catalogue - Electronic Relays and Controls
