1SVR427035R0000 CP-E 24/10.0, ABB CP-E Switch Mode DIN Rail Power Supply, 90 → 132V ac ac, dc Input, 24V dc dc Output, 10A Output, 240W, Блок питания

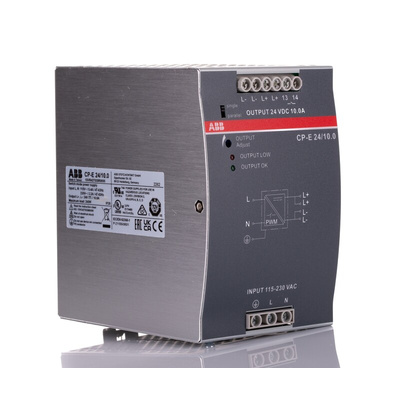

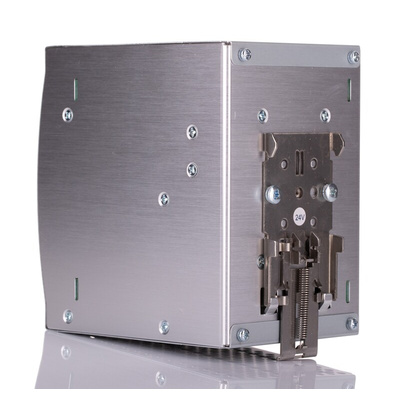

ABB DIN Rail Power Supply, AC/DC Input Voltage, DC Output Voltage - CP-E Series - 1SVR427035R0000

Ensure your industrial equipment receives the correct voltage and current supply with this switch mode DIN rail power supply from ABB. It accepts both AC and DC inputs and provides a stable DC voltage output, so minimises the chance of the incorrect supply damaging your equipment. As its output power supply is adjustable, you can choose the voltage range that best suits your device's needs. The unit is simple to manually set using the potentiometer on its front face. An efficiency of 89% means minimal power is lost during the switching process.

Features & Benefits

• Free-convection cooling means there's no need for additional fans or ventilators
• Stabilised against short circuits and overload for safety
• Low heat dissipation keeps the unit's operating temperature cool for power efficiency
• LEDs allow for quick and convenient status identification

Applications

• Security and alarm systems
• Industrial sensors
• Transmitters and receivers
• Relays

Is this power supply suitable for worldwide use?

Yes, this device is suitable for worldwide use, as it has two capacitors that provide mains buffering of at least 30ms.

CP-E 24/10.0 Power supply Data Sheet

Instruction Sheet - 1SVR427035R0000

Manual - 1SVR427035R0000

Catalogue - Electronic Relays And Controls
