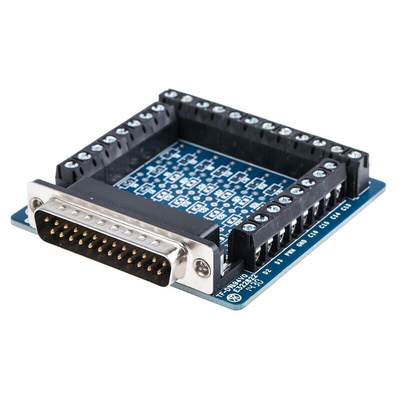

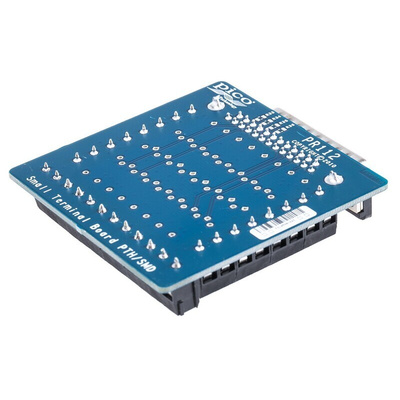

pico Technology PP604 Terminal Board, For Use With Multi-Channel Data Logger

PicoLog 1000 Terminal Board

Connects to DB25 connector on PicoLog 1000 Series loggers
Screw terminals allow connection to each analogue and digital channel
Prototyping area for custom signal conditioning
Compatible with the PicoLog 1012,1216 ADC11/10 & ADC11/12 dataloggers

Pico PC Based Data Acquisition

General Features for All Units:

Easy to use PC-based data acquisition products that plug into a USB port on your PC (desktop or laptop) and require no power supply. Replacing costly chart recorders and complicated "plug in" data acquisition boards, these instruments allow your computer to display and record voltages. By connecting suitable sensors they can be used to measure temperature, pressure, humidity, light levels, current, power, speed, vibration, oxygen content and other signals.

Measures and logs temperature, pressure, humidity, light resistance, current, power, speed, vibration, oxygen levels & other signals depending on unit chosen, please see data sheets.
PicoLog software can collect data at rates from 1000 per second (depending on the speed of your computer and the operating system) to once per hour; up to 1 million samples can be collected
Data can be displayed in both graphical or spreadsheet format both during and after data collection
Programmable alarm limits can be set for each channel
PicoLog can collect data from multiple converters at the same time. This not only allows a mix of these voltage inputs units to be used on the same PC, but also allows other PC based instruments such as the TC-08 (temperature measurement) and the ADC-200 oscilloscope to be used at the same time
For users who wish to write their own software, drivers and examples are available for C, Pascal, Delphi, Visual Basic, HP VEE and LABVIEW.

PicoLog 1000 Series Multi-channel Voltage Data Loggers Data Sheet

PicoLog 1000 Series Multi-channel Voltage Data Loggers User's Guide
