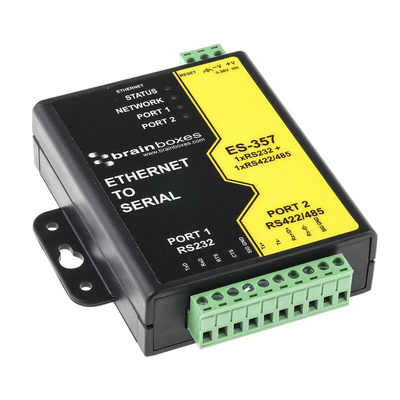

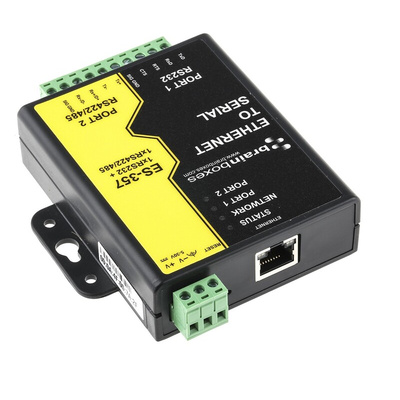

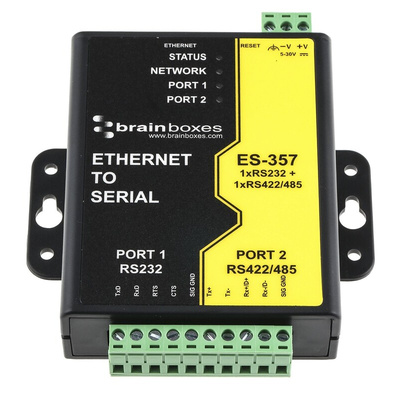

ES-357, Brainboxes 2 Port PCI RS232, RS422, RS485 Serial Card, Плата

Brainboxes Serial Board

The Brainboxes Serial Board provides access to 1 RS232 and 1 RS422/485 serial port. Data transfer rates up to 230,400 baud rates, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 – 1 twisted pair -half duplex configuration with autogating provides trouble-free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser.

Features and Benefits

User friendly interface, simple to use, powerful in operation
Web configuration and RFC2217 compliant interface for non-Windows users
LED status indication
Optional DIN rail mounting kit
Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required
Simple operation for each and every operating system
Flow Control: RTS/CTS, DSR/DTR, XON/XOFF
Data Rate 10/100 Megabits/second
Cabling Normal/Crossover auto-sensing (Auto-MDIX)
Connection to Network Ethernet 10BaseT/100BaseTX

Certifications

IP30 rated
AEO C-TPAT Microsoft Certified Gold Partner WEEE RoHS EMC: CE TAA

ES-357 ETHERNET TO SERIAL DEVICE 1 PORT RS232 + 1 PORT RS422/485 Data Sheet
