Tektronix P6245 Oscilloscope Probe, Active Type, 1.5GHz, 1:10, BNC Connector, Щупы для осциллографа

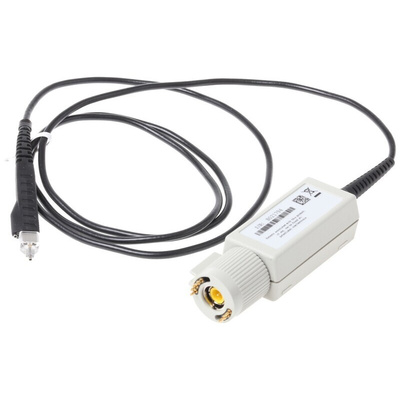

P6245 Active FET Probe

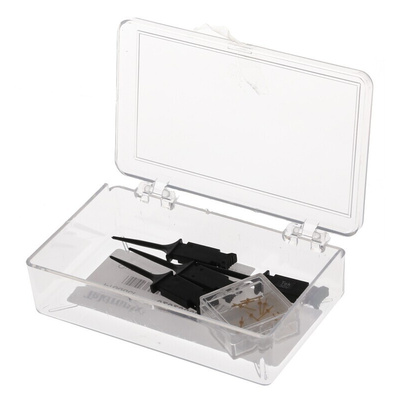

Solves three longstanding problems by providing: lower DUT loading (≤1 pF/1 MΩ probe loading); direct and easy access to SMDs; accesses DUT signals and scope bandwidth for TDS600/700/3000/5000/6000/7000*1 and CSA7000 scopes up to 1 GHz bandwidths. Provides the electrical and mechanical performance required for today's digital systems designs. No additional power supplies or cables are required when used with TEKPROBE BNC oscilloscopes. Achieves high-speed signal acquisition and low circuit loading. The small compact probe head and versatile attachment accessories allow direct connection to the device under test.

Provides scope bandwidth at the probe tip for the TDS500/600/700
≥1.5 GHz bandwidth (typical, probe only)
≤1 pF input capacitance
1 MΩ input resistance
Direct access to SMDs as small as 0.5 mm pitch
Measures CMOS, BiCMOS, ECL, GaAs and TTL Logic

Active Probe for SMDs Data Sheet
