Tektronix TDP Series TDP1500 Oscilloscope Probe, Active, Differential Type, 1.5GHz, 1:1, 1:10, Щупы для осциллографа

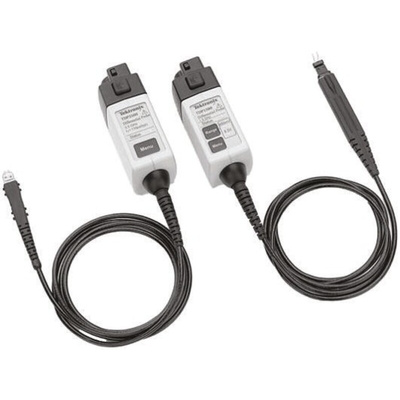

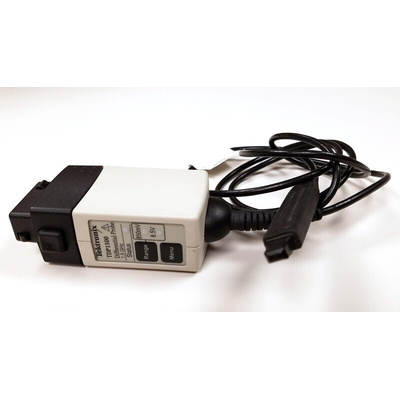

Tektronix TDP1500 Differential Probes with TekVPI Interface

The Tektronix differential active oscilloscope probe offers truer signal reproduction and fidelity for high-frequency measurements. With ultra-low input capacitance and the versatile device under test connection capabilities, it has excellent high-speed electrical and mechanical performance required for today’s digital system designs. It is specifically designed for use and direct connection to the probe interface used on the DPO7000, DPO4000 and MSO4000 series oscilloscopes.

Features and Benefits

Bandwidth is DC to 1.5 GHz
Attenuation ratio is 1:10, 1:1
Input impedance is 200Kohmll1pF
Rise time is 265ps
Attenuation ratio is 1:10
Input impedance is 200Kohmll1pF
Rise time is 265ps
Maximum common mode input voltage is ±7V
Non-destructive Max input voltage is ±25V (DC+pkAC)
Wide compensation range is (15pF-25pF)
CMRR (typical) is >60dB at 1MHz, > 25dB @ 1GHz
Excellent common mode rejection - reduces measurement errors in higher common environments
Low capacitive and resistive Loading - maintains signal fidelity and reduces DC biasing interactions
DUT attachment accessories enable connection to fine spaced SMDs
Set-up and control from probe comp box or oscilloscope user interface
AutoZero - zeros out output offset
Remote GPIB/USB probe control through the oscilloscope (requires TEKUSB-488 Adapter for GPIB control on DPO4000 and MSO4000)
Cable length 1200mm

Applications

The TDP1500 has been designed for use with oscilloscopes with the TekVPI probe interface. These differential probes can be used for design, validation, debugging and characterisation of common high-speed serial bus designs including I2C, CAN/LIN, SPI, Serial ATA, Ethernet (GbE), USB 2.0, FireWire (1394b)

Signal integrity
Jitter and timing analysis
Manufacturing engineering and test

Supplied with
type":"Supplied with",

Nylon carrying case
Plastic accessory box
Straight pins
Longhorn VIA adaptor
1-inch and 3-inch solder down
Y lead adapter
MicroCKT test tip
Tip saver
3-inch ground lead
Marker band set
