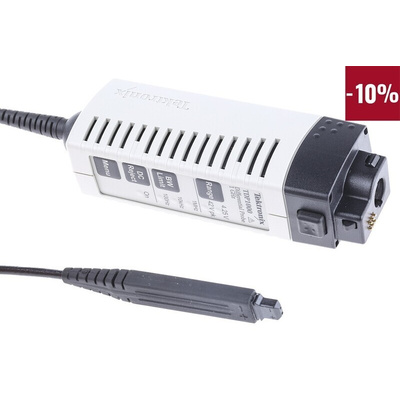

Tektronix TDP Series TDP1000 Oscilloscope Probe, Differential, High Voltage Type, 1GHz, 1:5, 1:50, Щупы для осциллографа

Tektronix Oscilloscope Probes

The Tektronix high voltage differential oscilloscope probe provides an excellent high-speed electrical and mechanical performance required for Switch Mode Power Supply (SMPS), CAN/LIN Bus and high-speed digital system designs.

Features and Benefits

Bandwidth is DC to 1GHz
Attenuation is 50:1/5:1
Rise time is 350ps
Differential mode input voltage is ±42V (DC + pk AC)
30VRMS
Input impedance is 1Mohm ll<1pF each side to ground
Common mode voltage range is ±30V (DC + pk AC)
25VRMS
Non-destructive Max input voltage is ±100V (DC + pk AC)
CMRR (typical) is 55dB at 30kHz >50dB at 1MHz >18dB at 250MHz
Selectable bandwidth limiting filters
DC reject
Connects to some Tektronix oscilloscopes using the TekVPI™ probe interface
Easy access to scope-displayed probe menu for probe set-up control and operating status information
Auto-Zero – Nulls output offset

Applications

High-speed switch mode power supply design
CAN/LIN bus design
Digital design and characterization
Manufacturing engineering test
Research and development

Datasheet

Tektronix Oscilloscope Probes Video
