Artesyn Embedded Technologies Switching Power Supply, LPS205-M, 24V dc, 10.4A, 125W, 1 Output, 120 → 300 V dc,, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

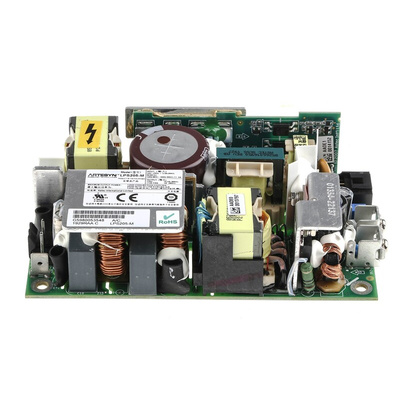

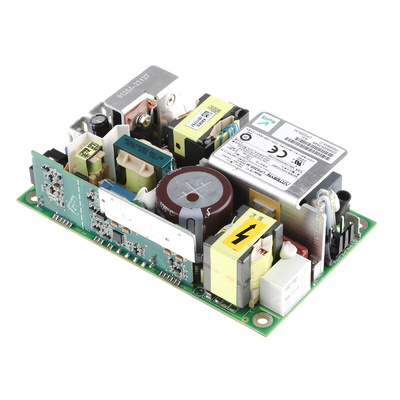

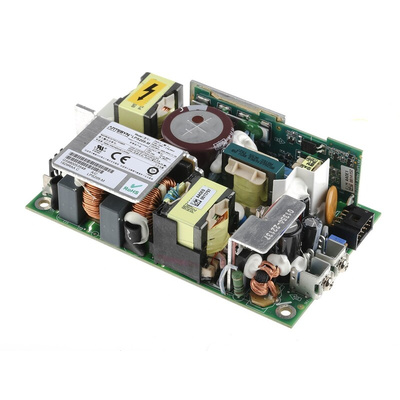

The Artesyn Embedded Technologies LPS205-M series embedded switch-mode power supply is 125W, AC to DC plug-in device with a single output. It has a universal input supply voltage rating ranging between90VAC and 264VAC or 120VDC and 300VDC.

Features and Benefits

Active power factor correction
Adjustable main output
Built in class B EMI filter
Demonstrated MTBF 550,000 hours
Fits into 1U high applications
Footprint has 3in x 5in
High power density
Isolated 12V fan output
Low power logic control
Output current is 10.4A at 24VDC
Overload protection
Overvoltage and thermal overload protection
Remote sense

Certifications

CB approved
EN61000-3-2
TUV approved
UL 60601-1
UL 60950
UL approved

LPS205-M - Data Sheet
