280702-1, TE Connectivity AMPMODU MOD I Series Female Crimp Terminal, 22AWG Min, 18AWG Max, Контакты

TE Connectivity AMPMODU Mod I Receptacle Crimp Contacts

A range of TE Connectivity AMPMODU Mod I Receptacle Crimp Contacts.
For Crimp Tool see stock number 509-2010 .

Contact details:

509-1988\t22-18 awg (0.3-0.9mm²), SCP, gold, loose
509-1994\t22-18 awg (0.3-0.9mm²), SCP, tin, loose
509-2004\t22-18 awg (0.3-0.9mm²) HCP, tin, loose
718-9747\t2-18 awg (0.3-0.9mm²) HCP, gold, strip

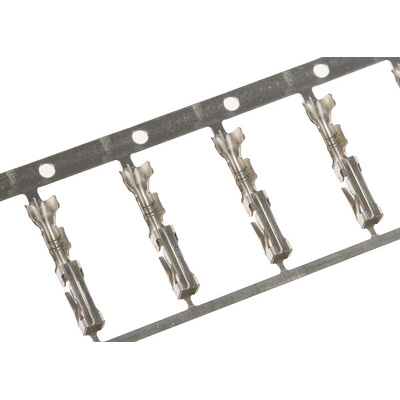

668-9381\t2-18 awg (0.3-0.9mm²) HCP, tin, strip
668-9384\t2-18 awg (0.3-0.9mm²), SCP, tin, strip
668-9387\t22-18 awg (0.3-0.9mm²), SCP, gold, strip
668-9390\t20-17 awg(0.5-1.0mm²) HCP, tin, strip
745-5845\t22-18 awg (0.3-0.9mm²) HCP, gold, loose
745-5097\t2-18 awg (0.3-0.9mm²) HCP, gold, strip

TE Connectivity AMPMODU Mod I 3.96mm Interconnect System

The AMPMODU Mod I 3.96 mm interconnect system is a rugged large-scale connector system with a current rating of 5 A maximum per contact and 0.79 x 1.57 mm posts. This connector system is suitable for board to board and wire to board applications and consists of PCB headers and cable mount receptacles.

Amp Modu I Rec Contact High Pressure C.O.S.I Drawing

Application Specification
