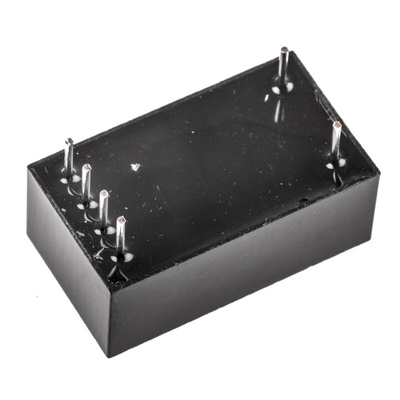

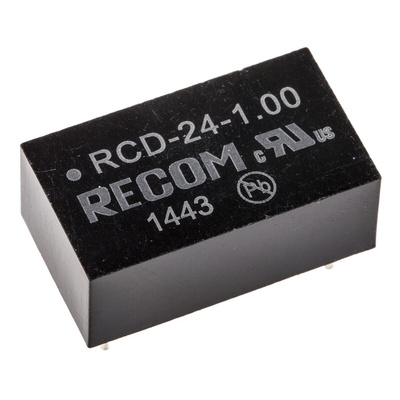

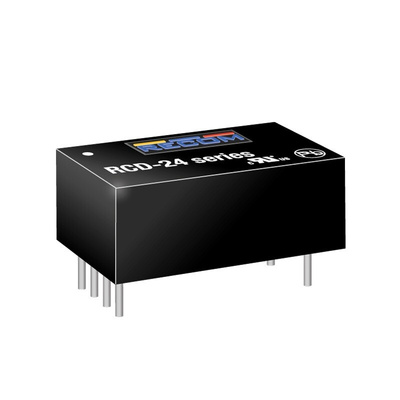

RCD-24-1.00, Recom LED Driver, 3 → 31V dc Output, 31W Output, 1A Output, Constant Current Dimmable, Драйвер

RECOM LED Driver, 96% Efficiency, Regulated Type - RCD-24 Series - RCD-24-1.00

Use this LED driver from RECOM to power your lights from a DC source. It lowers an input voltage between 6 and 36V DC to a stable supply between 3 and 31V DC with a maximum output current of 1A for improved light performance. To increase or decrease brightness, choose either analogue voltage or digital pulse-width modulation signals. As it can withstand relative humidity up to 95%, this unit is safe to use in areas where high levels of non-condensing water vapour can be expected.

Features & Benefits

• Wide operating temperature range between -40°C and +71°C for use in challenging environments
• Low weight of 4.5g puts minimal strain on your system
• Protected from short circuits at rated output current to prevent electrical hazards
• Black plastic housing for improved current insulation
• Through-hole mounting saves on installation time

Applications

• Outdoor lighting systems
• Hospitality venues
• Warehouses

Can I mount this LED driver in small spaces?

Yes. Thanks to its compact dimensions of 22.1 (L) x 12.6 (W) x 8.5mm (H), this unit's a smart choice for use in tight spaces.
