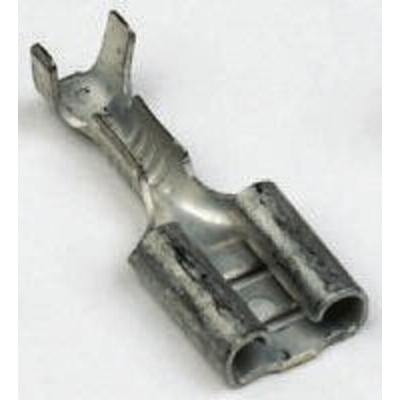

100495-2, TE Connectivity, FASTON .250 Uninsulated Spade Connector, 6.35 x 0.81mm Tab Size, 0.5mm² to 1.5mm², Обжимной контакт

6692361
Номер производителя: 100495-2Производитель: TE Connectivity
Цена за шт. (норма упаковки 100 шт)
36.00 руб. (С НДС) *
Количество 100+ 500+ 2500+ 5000+ 10000+
Цена 36.00 руб. 30.00 руб. 30.00 руб. 27.00 руб. 27.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TE Connectivity FASTON 250 Crimp Receptacles

FASTON 250 series quick connect crimp receptacle terminals that offer speed of application and uniform reliability. Experience over widespread segments of industry has proved this crimp to be the most effective way of assuring stable electrical and mechanical performance. These FASTON 250 receptacle terminals have a step down insulation support barrel to compensate for insulation thickness. Tapering walls at the rear of these FASTON 250 receptacles prevent over insertion of shoulderless tabs. Each FASTON terminal has precisely controlled crimping specifications which allow all connections to perform as specified. To achieve the optimum combination of mechanical strength and electrical conductivity use match-mated application crimp tooling which can be purchased separately. The "F" style crimp terminations offer precise tensile strength and conductivity that lasts the life of the circuit. This method of termination also offers maximum resistance to vibration and corrosion.

Features and Benefits

• Quick application to conductor with use of correct tooling
• Precisely controlled crimping specifications for uniform reliability
• Stable electrical and mechanical performance
• Precise tensile strength and conductivity
• Maximum resistance to vibration and corrosion

Applications

These FASTON 250 crimp receptacles are commonly used in the appliance and automotive industry. Other applications include computer and peripheral equipment, industrial controllers, test equipment and telecommunications equipment.

Faston

Техническая спецификация
pdf0.250 L.I.F Faston Contact Drawing
Maximum Wire Size mm²:
1.5мм²
Minimum Wire Size mm²:
0.5мм²
Длина общая:
19.1мм
Изоляционный:
Uninsulated
Концевая заделка:
Crimp
Максимальный размер провода AWG:
15AWG
Материал контактов:
Латунь
Минимальный размер провода AWG:
20AWG
Покрытие контактов:
Олово
Размер ярлычка:
6.35 x 0.81мм
Род:
Female
Серия:
FASTON .250
