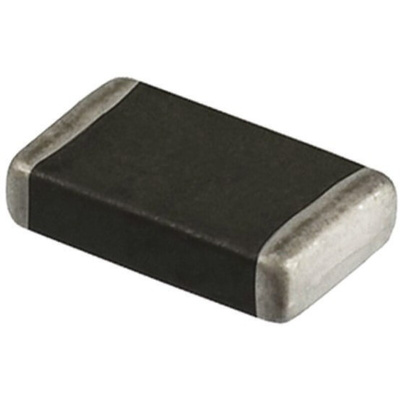

82536040, Wurth Elektronik, WE-VS Metal Oxide Varistor 200pF 1A, Clamping 21V, Varistor 8V, 0603 (1608M), Варистор

SMD Power Varistors WE-VS Series

After a surge impulse the varistors works immediately in normal mode so there is no slip current
Excellent absorption
Operating temperature: -40 °C → +85 °C for the sizes 0402 to 0805,-40 °C → +125 °C for the sizes 1206 to 2220
Nickel barrier for lead-free soldering

Standards

Surge protection in accordance with EN-61000-4-5
ESD protection in accordance with EN-61000-4-2
Burst protection in accordance with EN-61000-4-4

Fast response time
Low leakage current
Nickel barrier for leadfree soldering
Operating temperature: –40 ºC to +85 ºC
Protection of DC distribution
Protection of power supply
Protection of bus systems and communication lines
Limiting of overvoltages
Protection of semiconductors
Surge protection in accordance with EN 61000-4-5
ESD protection in accordance with EN 61000-4-2

WE-VS 0603 Power Varistor 4VRMS 5.5VDC
