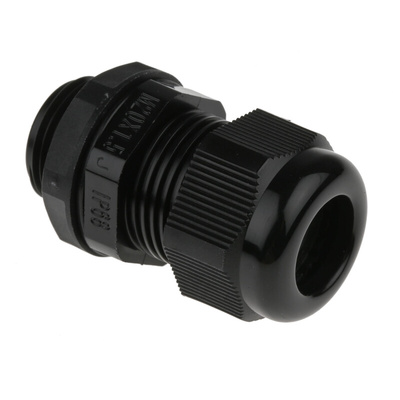

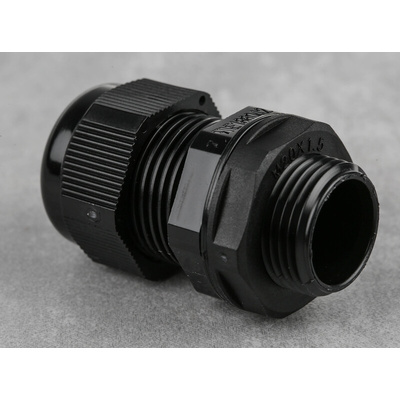

RS PRO M20 Cable Gland With Locknut, Nylon, IP68, Кабельный ввод

6694664
Производитель: RS PRO
Цена за 1 упаковку (5 шт)
1731.00 руб. (С НДС) *
Количество 10+ 20+ 30+ 40+
Цена 1662.00 руб. 1608.00 руб. 1524.00 руб. 1488.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO IP68 Dome Top Cable Gland

Brought to you by RS PRO, a range of metric threaded cable glands offering excellent strain relief and cable protection. Cable glands allow you to mount a cable into a pre-drilled hole. Commonly used within construction and by electrical engineers, cable glands are simple and easy to use. Each gland is rated as IP68, ensuring the level of cable protection is incredibly resilient to the outdoors and other harsh environments. All models are highly reliable and excellent quality.

Features and Benefits

• Metric threaded
• Completely sealed against dust
• Excellent water resistance
• Black and white versions available
• Made with high quality Nylon 66

What is a cable gland?

Cable glands are a standard cable entry device. They are handy accessories for ensuring a tight seal and complete protection from the area which the cable is feeding into. They work by being screwed into an already threaded hole or socket. The wire, still sealing the wall or enclosure, will then enter through the carefully sized hole. These particular cable glands are rated at IP68, which provide excellent use within indoor or outdoor environments.

What are cable glands used for?

There are various types of applications which would benefit from, or require a cable gland. Consistently used by electrical engineers who need to run cables and wires through to an area which will need to be enclosed or sealed. There are white and black versions available for applications that need to keep to a specific design. As an example, some of the uses of cable glands would be:

• Machinery with delicate internals
• Telecommunications
• Flow meters
• Underwater power generators

Extra Information

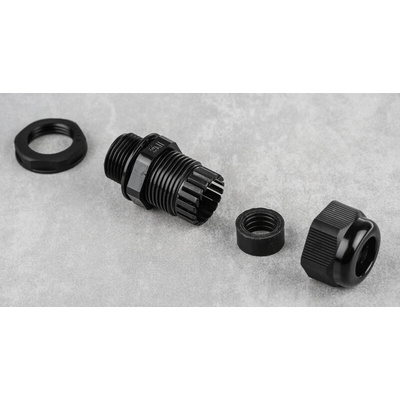

This particular gland has a thread size of M20. The IP68 protection will provide a perfect solution for a needed cable entry, on an application which must be sealed. Also, supplied with this gland are some essential accessories. Which would be a locknut and entry thread seal.

Техническая спецификация
pdfDatasheet
pdfCable Gland Selection Chart
Встречающиеся стандарты:
UL 94 V-2
Контргайка в комплекте:
Да
Максимальный диаметр кабеля:
12мм
Материал:
Нейлон
Минимальный диаметр кабеля:
6мм
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-60°C
Размер резьбы:
M20
Степень защиты IP:
IP68
Цвет:
Черный
