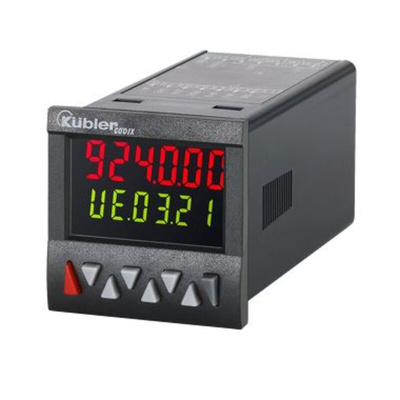

6.924.0103.000, Kübler CODIX 924 Counter, 6 Digit, 65kHz, 90 → 260 V ac, Счетчик

6 Digit Multifunction, Backlit LCD Display

Counter, Tachometer and Timer all in one device
Can be used as a preset counter, batch counter or totaliser
2 line 2 x 6 digits LCD display with green backlight
Direct input of presets via the front keys or the Teach-In input
3 predefined settings for the most common parameter settings
Tracking presets eliminate the need for reprogramming of the pre-signal
4 stage RESET modes and 3 stage key lockout

Kubler Digital Counter

The Kubler CODIX 924 series digital counter is a 6-digit LCD display, multifunction 2,4 or 6 preset counter as a tachometer and timer all-in-one device. It has a voltage rating ranges between 100VAC and 240VAC. This product can be used as a preset counter, batch counter or totalizer with up to 6 presets. It can solve a wide variety of control and monitoring tasks in every application. This counter has a maximum count frequency of 65KHz.

Kubler Panel Mounting 48mm x 48mm - Electronic Counters
Range of Resettable Counters / Timers / Rate Meters. All have 45mm x 45mm panel cut out and are sealed to IP65 (front fascia). Data retention greater than 10 years

Features and Benefits

Direct input of presets via the front keys
Bi-directional counting
Relay output
3 predefined settings for the most common parameter settings
Tracking presets eliminate the need for reprogramming of the pre-signal
4 stage RESET modes and 3 stages of key lockout
Step or tracking presets (eliminates the need for reprogramming of the pre-signal)
Plug-in screw terminals
Operating temperature ranges between -20°C and 65°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines

Certifications

IP65 rated

Kubler Panel Mounting 48 x 48 - Electronic Counters

Range of Resettable Counters / Timers / Rate Meters. All have 45 x 45mm panel cut out and are sealed to IP65 (front fascia). Data retention greater than 10 years.
