6.924.0103.300, Kübler CODIX 924 Counter, 6 Digit, 65kHz, 10 → 30 V dc, Счетчик

Kubler Digital Counter

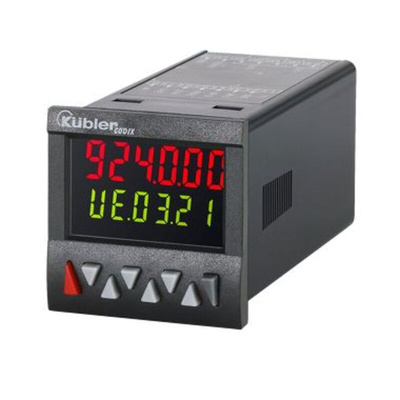

The Kubler CODIX 924 series digital counter is a 6-digit LCD display, multifunction 2,4 or 6 preset counter as a tachometer and timer all-in-one device. It has voltage rating ranges between 10VDC and 30VDC. This product can be used as a preset counter, batch counter or totalizer with up to 6 presets. It can solve a wide variety of control and monitoring tasks in every application.
This counter has a maximum count frequency of 65KHz.

Kubler Panel Mounting 48mm x 48mm - Electronic Counters
Range of Resettable Counters / Timers / Rate Meters. All have 45mm x 45mm panel cut out and are sealed to IP65 (front fascia). Data retention greater than 10 years

Features and Benefits

Direct input of presets via the front keys
Bi-directional counting
Relay output
3 predefined settings for the most common parameter settings
Tracking presets eliminate the need for reprogramming of the pre-signal
4 stage RESET modes and 3 stages of key lockout
Step or tracking presets (eliminates the need for reprogramming of the pre-signal)

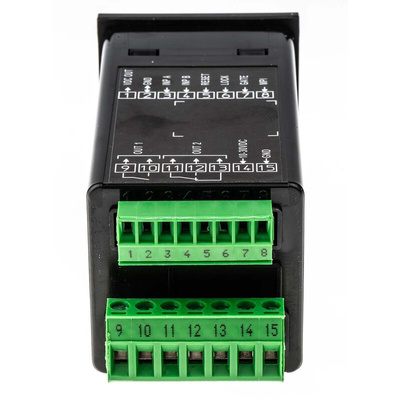

Plug-in screw terminals
Operating temperature ranges between -20°C and 65°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines

Certifications

IP65 rated

6.924.0103.300 Datasheet

Operating Instructions(Multi)
