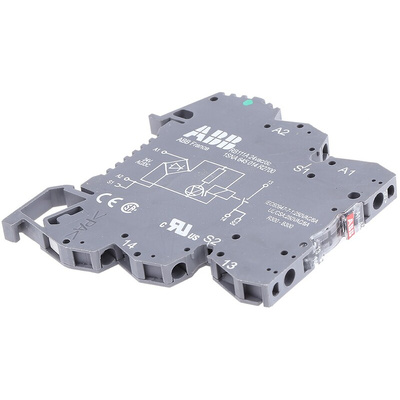

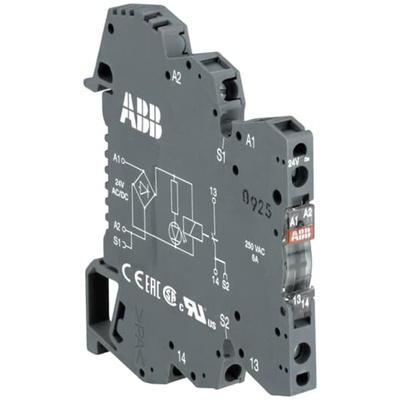

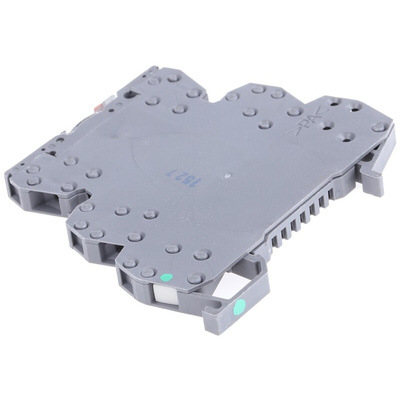

1SNA645014R2700 RB111-24VUC, ABB R600 Series Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPST, 10 → 6000mA Load

ABB Interface Relay, 0.02kg Weight, 75mm Height - R600 Series - 1SNA645014R2700

Keep your automated processes on the move with the help of this interface relay from ABB. It's ideal for amplification, signal matching and isolating current between your input and output devices. As it's equally at home when used with field bus systems, PC or PLCs, this is a versatile choice. It uses a coil energised by 24V AC/DC for wide compatibility. As the unit's housing is soldered on, it works effectively even in areas of high vibration so it's able to withstand demanding industrial settings. Screw terminals make installation fast and straightforward using just your favourite screwdriver.

Features & Benefits

• DIN rail compatible for quick and easy mounting
• Compact dimensions of 70 (L) x 6 (D) x 75mm (H) for space-efficiency
• Built-in LEDs for at-a-glance status monitoring of your operations
• Housing stops burning in less than 10 seconds in the event of a fire

Applications

• Power supplies
• Radio-electronic systems
• Medical equipment

Can I use this relay in harsh conditions?

Yes. This assembly operates in a broad temperature range between -20°C and +70°C, so it's suitable for use in challenging environments.
