1SNA645002R0400, ABB R600 Series , 48V ac/dc SPDT Interface Relay Module, Screw Terminal , DIN Rail

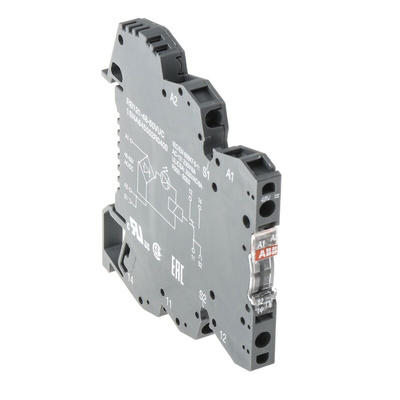

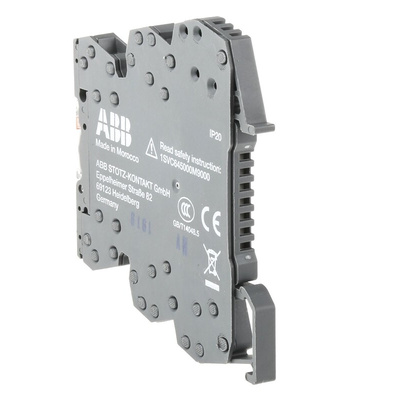

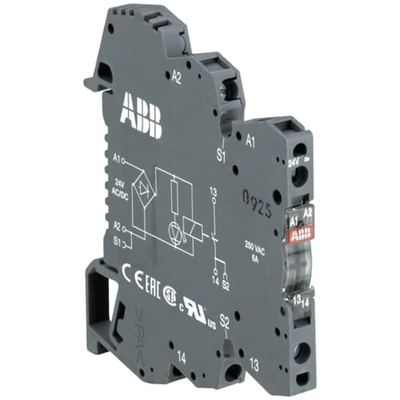

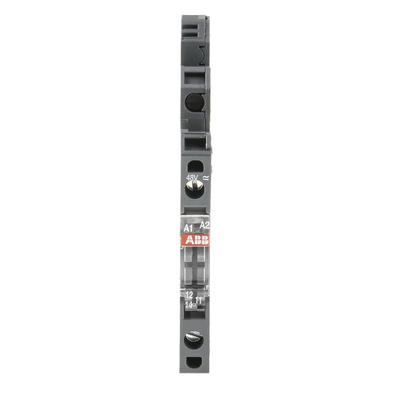

ABB Interface Relay Module

The ABB interface relay module is an innovative, ultra-compact, electromechanical device equipped with a 48VAC/DC coil voltage and SPDT contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC, PC or a field bus system at the sensor-actuator level. The device has many approvals and hence, it can be used for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications, thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space saving is essential.

Features and Benefits

SPDT 1C/O contact configuration with relay output from 10mA to 6A
Rated supply voltage of 48VAC to 60VAC and 48VDC to 60VDC
Built-in RC circuit
Leakage current protection on the input side
Available with visible or covered switch
Supports both manual and automatic actuation
Screw clamp type terminal connection
Operating temperature ranges between -20°C and 70°C
LED for the indication of the operational state

Applications

Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls

Certifications

IP20 rated
UL94 approval
CEI 947-7-1
CEI 947-1
CEI 1131-2
CEI 6066CE
