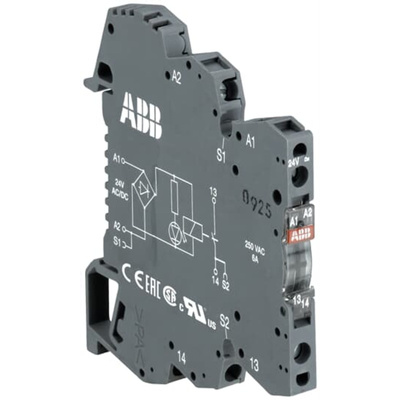

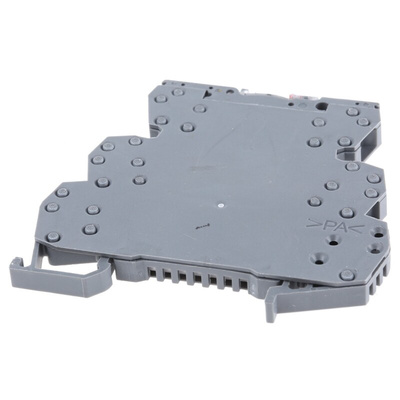

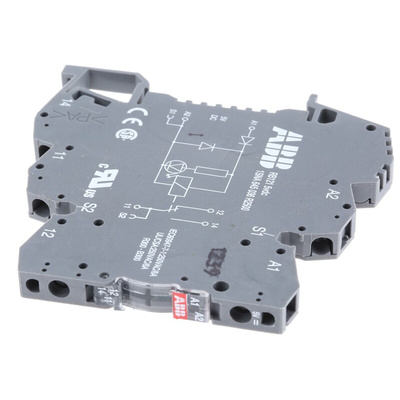

1SNA645036R2500 RB121PG-5VDC, ABB R600 Series Interface Relay, DIN Rail Mount, 5V dc Coil, SPDT, 3 → 6000mA Load

ABB Interface Relay, 40mA Current Rating, 5V DC Control Voltage - R600 Series - 1SNA645036R2500

Link up peripherals and control systems with different operating voltages using this interface relay from ABB. It features screw terminals for secure electrical connections that won't easily come loose, even in the event of heavy vibrations. The component has a built-in green LED indicator that clearly displays its operating status for easy troubleshooting. Its fast response time of 5ms and its release time of 8ms mean it provides rapid switching, helping to prevent downtime. A typical power consumption of 0.2W means it's an energy-efficient choice.

Features and Benefits

• Wide operating temperature range between -20°C and +70°C for use in demanding conditions
• Designed for DIN rail mounting for ease of installation
• IP20 rating means its finger-safe and protected against objects larger than 12mm
• Light weight of 20g minimises strain on your equipment
• Current rating of 40mA for use in low-power applications

Applications

• Medical equipment
• Telecommunication stations
• Electronics manufacture

What wire sizes will this interface relay accommodate?

IP20 rated
UL94 approval
CEI 947-7-1
CEI 947-1
CEI 1131-2
CEI 60664-1

This interface relay accepts wires ranging in size from 24 to 12AWG, making it a versatile choice.

Relays Optocouplers Catalogue

Datasheet - 1SNA645036R2500
