43640-0301, Molex, Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 3 Way, 1 Row, Корпус разъема

Plug Housings, 43640 Series

Micro-Fit 3.0™ Receptacle Housing 43645, Micro-Fit 3.0™ Crimp Terminal 43031

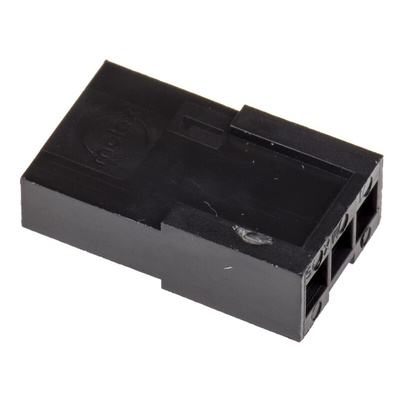

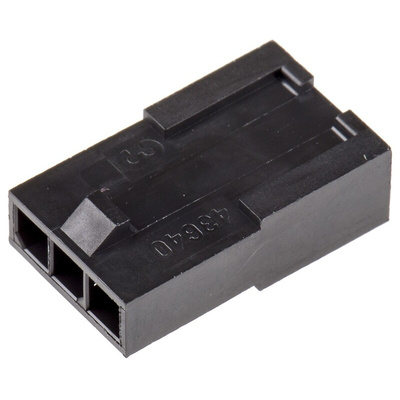

Molex Male Connector Housing, 3mm Pitch, 3 Way - Micro-Fit 3.0 Series - 43640-0301

Link small wires to printed circuit boards (PCB) headers with this compact connector housing unit from Molex. It's a 3-way component that lets you send power and data signals to as many as three circuits at the same time, saving both space and materials. As it features a durable nylon body, it's resistant to mechanical stress and delivers long-lasting use even in demanding settings. This unit acts as an insulator to protect people and equipment from electrical shocks. It's also self-extinguishing and stops burning within 10 seconds when a fire occurs, making it a practical choice for use in volatile areas.

• Pitch of 3mm for a safe distance between contacts to prevent electrical hazards
• Light weight of 0.57g for minimal strain on your setup
• Wide operating temperature range of -40°C to +105°C for use in demanding environments

Applications

• Consumer electronics plants
• Mobile phone manufacturing
• Medical equipment

How do I terminate wires to this connector housing?

You can terminate wires to this component by crimping – a technique that creates a solderless join by firmly pressing wires together. This delivers a strong and airtight connection between the connector's contacts and the wire ends.

Molex Micro-Fit 3.0 Series

SD-43640 Dimensional Drawing

Datasheet

Line Drawing

Micro-Fit+ Connector Datasheet
