43030-0011, Molex Micro-Fit 3.0 Series Female Crimp Terminal, 30AWG Min, 26AWG Max, Контакты

Molex Micro-Fit 3.0 mm Crimp Contacts

Pin and receptacle crimp contacts for use in the Micro-Fit 3.0 mm plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. The 46235 series crimp contacts are RMF (Reduced Mating Force) contacts which have a reduced engagement and disengagement force for ease of use. These Micro-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility

Features and Benefits

• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility

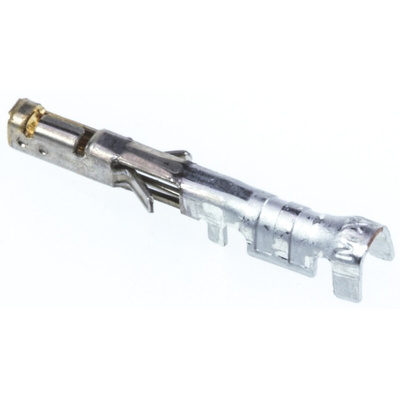

Molex Crimp Terminal, 8.5A Current Rating, Gold Plating - Micro-Fit 3.0 Series - 43030-0011

Organise connections on your circuit board with this crimp terminal from Molex. It provides a safe means of carrying signals to your PCB without putting you in contact with live wires. The unit is made of phosphor, so it has the high conductivity needed to be a reliable messenger. Gold plating boosts its resistance to corrosion, so you can rest assured of long-lasting service. As it accommodates wire sizes ranging between 30 and 26AWG, this is a versatile option.

Features & Benefits

• Comes in a pack of 100, so you'll have enough for lots of jobs
• Current rating of 8.5A makes it the right choice for medium-duty equipment

Applications

• Consumer electronics
• Gaming consoles
• Automotive industry

What tool do I need to install this crimp terminal?

To install this component, all you need is a hand-ratcheting crimping tool (501-061).

Molex Micro-Fit 3.0 Series

Datasheet

Datasheet

Line Drawing - 43030-0011
