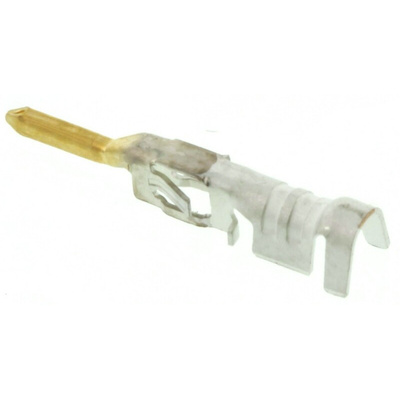

43031-0008, Molex Micro-Fit 3.0 Series Male Crimp Terminal, 24AWG Min, 20AWG Max, Контакты

Molex Micro-Fit 3.0 mm Crimp Contacts

Pin and receptacle crimp contacts for use in the Micro-Fit 3.0 mm plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. The 46235 series crimp contacts are RMF (Reduced Mating Force) contacts which have a reduced engagement and disengagement force for ease of use. These Micro-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility

Features and Benefits

• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility

Molex Crimp Terminal, Gold Contact Plating, 10mΩ Maximum Contact Resistance - Micro-Fit 3.0 Series - 43031-0008

Link up electrical connections in your equipment with this crimp terminal from Molex. The male-gendered component fits securely into female plugs and connector housings from the Micro-Fit 3.0 series. It has multiple contact points, each with a current rating of 8.5A. This gives the terminal reliable overall current-carrying capacity for use with high-powered equipment. Locking tangs are on hand to keep the terminal firmly positioned inside a housing – even in industrial settings exposed to strong vibration.

Features & Benefits

• Highly conductive phosphor bronze contacts achieve a reliable connection
• Gold plating ensures resistance to wear, heat and corrosion
• Performs safely in harsh conditions, thanks to a wide operating temperature range between -40°C and +105°C

Applications

• Factory automation
• Computer networking systems
• HVAC equipment

What wire dimensions can I use with this crimp terminal?

The component handles wire sizes between 24 and 20AWG for broad compatibility.

Molex Micro-Fit 3.0 Series
