Connector Kit E23, Molex Connector Kit, for use with ECO-160

Connector Kits

Connector kits containing mating connectors for the RS range of high density, open frame, switch mode power supplies
For connector kit E23 use Molex crimp tool 63811-7500, see stk no 450-391
For all other connector kits use JST crimp tool WC-160, see stk no 688-0899

Molex Connector Kit For Use With ECO-160 Series - Connector Kit E23

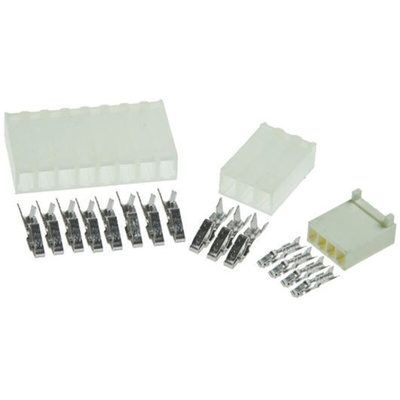

This kit from Molex is designed for power connection terminals in the ECO-160 range. The 18-piece set includes one 8-way connector and one 3-way connector with 11 crimp pins that make it simple to link directly to a motherboard. There's also a 4-way housing and 4 accompanying metal crimp terminals to ensure excellent conductivity and a reliable connection. The connectors in this kit are simple to install using the Molex ratchet crimping tool (450-391). They're reliably insulated to protect you from electric shock and can be used in a variety of industrial electronics applications.

• Compact dimensions to fit into small panel designs
• Impact and heat-resistant thermoplastic materials for durability and improved service life

Applications

• Personal computers
• Programmable logic controllers (PLCs)
• Integrated electronic systems

How do I crimp a wire to the terminal?

Use the smaller section of the crimping tool to hold the rear section of the terminal in place and insert the wire, ensuring it's fully inserted. Next, press the crimper down and release. The wire end of the crimp terminal can be closed by hand and inserted into the connector.

670-0611 Connector Data Sheet
