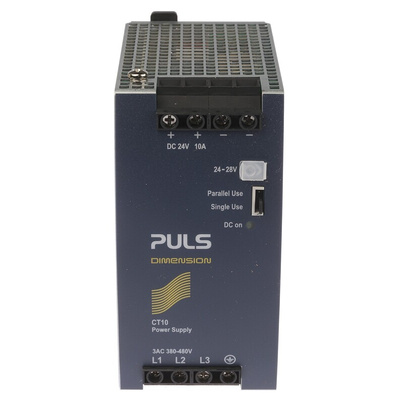

PULS DIN Rail Power Supply
The PULS DIMENSION C-Line series 3-phase DIN-rail switch-mode power supply has an output voltage of 24VDC at 10A current. This cost-optimised power supply is specifically designed with uncompromised quality and reliability for high-performance. This unit is equipped with automatic voltage range switching between 380VAC and 480VAC with passive PFC. This power supply has a specified life expectancy of the electrolytic capacitor of 50,000 hours. It has high immunity to power surges as well as low electromagnetic emission.
Note:
Power de-rating between 60°C and 70°C
Features and Benefits
Slim design
20% output power reserves can be used continuously up to 45°C
Wide range auto select input
High efficiency is up to 92.9%
Power rating is 240W
Ripple factor and noise is less than 50mVpp
Negligibly low input inrush current
Adjustable to a parallel mode for load sharing
Easy fuse breaking due to high overload peak current
Operation temperature ranges between -25°C and 70°C
Applications
Industrial control
Automation
Communication and instrumentation equipment
Certifications
IEC
UL approved
GL
EAC
CE certified
