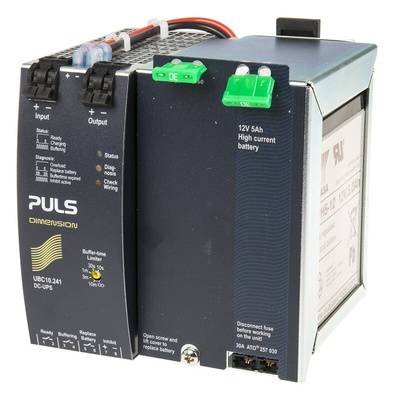

UBC10.241, PULS 24 → 28V Input DIN Rail Uninterruptible Power Supply, DIMENSION, ИБП

PULS Dimension UPS

The PULS DC-UPS controller is an addition to standard 24V power supplies to bridge power failures or voltage fluctuations. It avoids expensive downtimes and long restart cycles. A unique feature of the UBC10.241 is that it requires only one 12V battery to buffer the 24V output. This makes matching batteries unnecessary and allows a precise battery charging and testing. The UBC10.241 has one easily changeable, integrated 12V 5Ah high current VRLA battery.

Features and Benefits

50% power reserves
Buffer time more than 6min at 10A, 7Ah battery
Constant output voltage in buffer mode
Easy to install and use due to the plug & play concept
Electronically protected against output overloads
Extensive and smart diagnostic and monitoring functions
Extensive battery management including battery quality installation tests
Input voltage is 24V to 28V
Low voltage drop between input and output
Output voltage is 22.5VDC
Soft charger for optimum battery life

Applications

General purpose
Industrial control

Certifications

IEC 60950-1 standards
UL 508 standards
UL 60950-1 standards

Contains SVHC - Lead - CAS No. 7439-92-1
