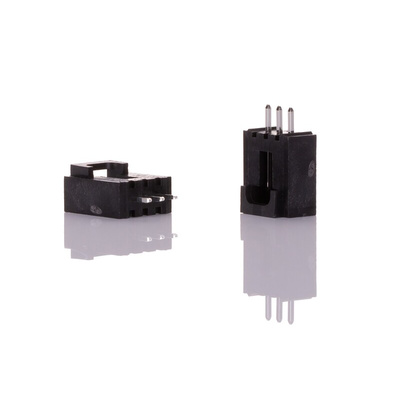

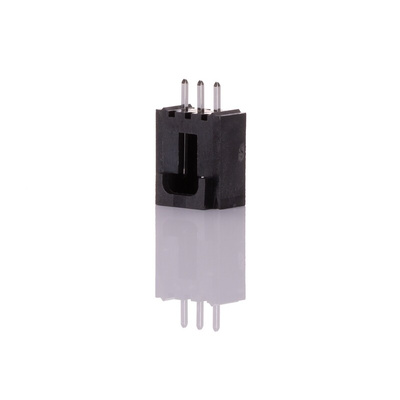

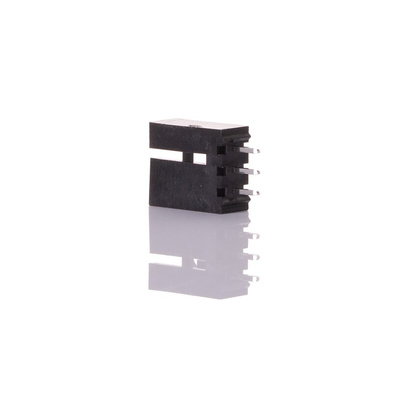

70543-0037, Molex SL Series Straight Through Hole PCB Header, 3 Contact(s), 2.54mm Pitch, 1 Row(s), Shrouded

Molex PCB Header, 3A Operating Current, 250V Voltage Rating - SL Series - 70543-0037

Use this 3-way PCB header from Molex to create electrical connections on your PCB. For easy compatibility, it's specially designed for use with 70600G (679-5928) and 70600N (670-3963) series connectors. The single-row unit features 2.54mm-pitch pins, which are fully shrouded to help prevent bending and achieve firm matings. Solder termination ensures secure joints between the circuit and unit to curb accidental disconnection when used in settings where vibration is likely.

Features & Benefits

• Highly conductive tin-plated contacts for reliable signal transmission
• Weighs only 0.699g, so adds minimal strain to your PCB
• Polarisation prevents accidental mismatches between parts for optimal performance
• 25 mating cycles for long-term performance

Applications

• Automated assembly and packaging lines
• Domestic appliances

At what temperatures can I use this PCB header?

You can safely use this component in demanding environments with temperatures ranging between -40°C and +105°C.
