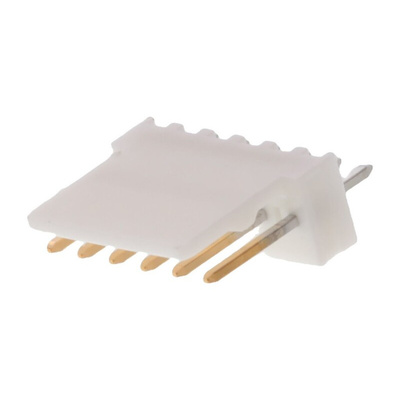

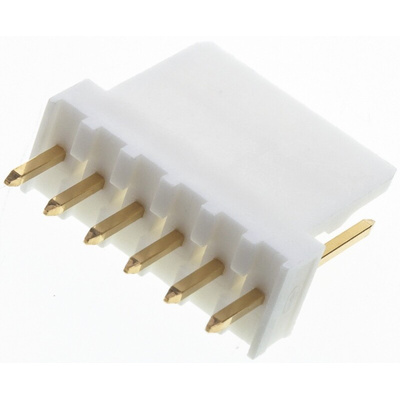

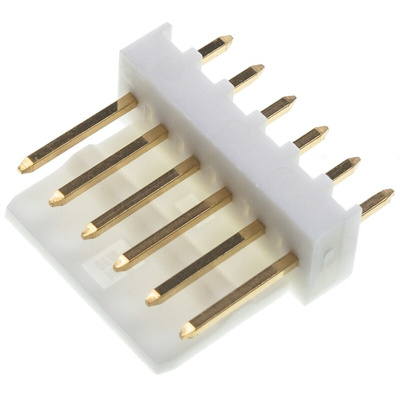

22-29-2061, Molex KK 254 Series Straight Through Hole Pin Header, 6 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Vertical Headers, 6410 Series

Mate with 2695 and 6471 Series housings.

Molex Pin Header, For Wire-to-Board Connections, 4A Current Rating - 6410 Series - 22-29-2061

To fly through the job of connecting PCB devices, reach for this pin header from Molex. You mate it with a compatible housing (such as 822-7884) to add handy plug-in connectivity to your setup. Thanks to gold-plated brass contacts, the connector is highly conductive and shrugs off corrosion to keep power and signals flowing without a snag. Clicking the unit into place is no hassle with its standard 2.54mm pitch. As the header locks to its socket, it stands its ground against movement.

Features & Benefits

• Nylon body provides reliable electrical insulation
• 6-way design neatly organises multiple circuits
• Polarised to stop damage caused by misalignment
• Single-row pin layout for easy installation in compact spaces

Applications

• Industrial networks
• Single-board computers
• Logistics industry

How do I mount this header to my board?

This unit is designed for through-hole mounting, so you simply press it into pre-drilled holes on your PCB, then solder it securely in place.
