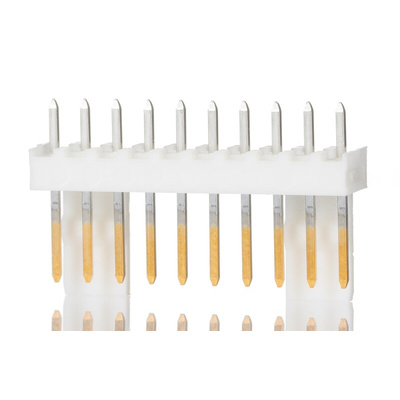

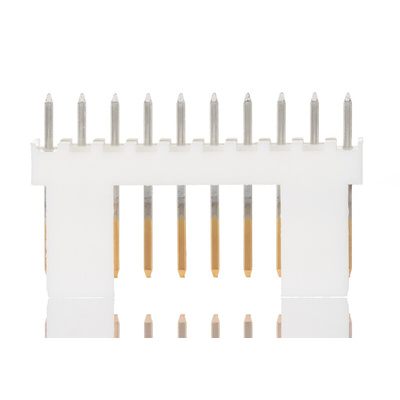

22-29-2101, Molex KK 254 Series Straight Through Hole Pin Header, 10 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Vertical Headers, 6410 Series

Mate with 2695 and 6471 Series housings.

Molex Pin Header, Nylon Housing Material, 4A Current Rating - KK 254 Series - 22-29-2101

Need a quick and easy way to make multiple wire-to-board connections to your PCB? Opt for this 10-contact pin header from Molex. Thanks to a voltage rating of 250V, it's a safe choice for low-power to medium-power applications. Gold-plated brass pins deliver high conductivity and as they're corrosion-resistant, you can rely on this device for long-lasting performance. The straightforward through-hole soldering method makes installation a breeze and achieves joins that are physically and electrically secure.

Features & Benefits

• Partially shrouded to save space on a crowded circuit board
• Straight orientation for easy connection
• Standardised 2.54mm pitch is compatible with most breadboards for flexible use

Applications

• Medical equipment
• Domestic appliances
• Automotive industry

How can I avoid mating errors when I'm connecting my components?

To save time during installation and make sure your circuits run smoothly, this helpful piece of kit is polarised to the mating part, so it's impossible to assemble incorrectly.

Wafer Friction Lock Header Drawing

Datasheet

Line Drawing
