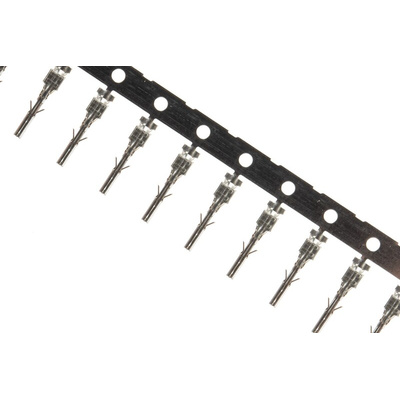

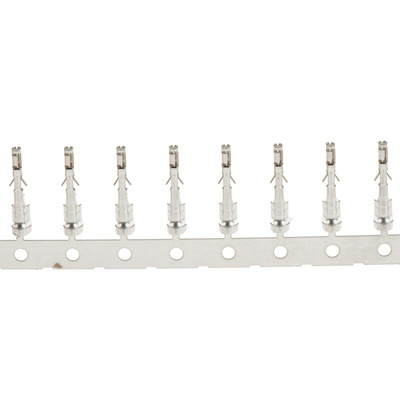

43030-0001, Molex Micro-Fit 3.0 Series Female Crimp Terminal, 24AWG Min, 20AWG Max, Контакты

Molex Micro-Fit 3.0 mm Crimp Contacts

Pin and receptacle crimp contacts for use in the Micro-Fit 3.0 mm plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. The 46235 series crimp contacts are RMF (Reduced Mating Force) contacts which have a reduced engagement and disengagement force for ease of use. These Micro-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility

Features and Benefits

• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility

The Molex 43030-0007 is a female crimp contact from their 43030 Micro-Fit 3.0 series. This connector is made from a tin-plated phosphor bronze and designed for wires of 20-24 AWG.

Where is it used?
The 43030-0007 is used in the manufacturing of PCB sockets. This crimp contact is ideal for use in consumer goods such as white goods and security systems, telecommunications such as routers, medical machines such as monitors and automotive items such as harnesses.

Features:
Female crimp contact
20-24 AWG wire compatible
43030 Micro-Fit 3.0 series
Reliable connection
Compatible Accessory Parts:

43020 / 43645 Micro-Fit 3.0 Receptacle Housings
44133 Micro-Fit BMI Panel Mount Receptacles

Note

A bag of 100
