43030-0002, Molex Micro-Fit 3.0 Series Female Crimp Terminal, 24AWG Min, 20AWG Max, Контакты

Molex Micro-Fit 3.0 mm Crimp Contacts

Pin and receptacle crimp contacts for use in the Micro-Fit 3.0 mm plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. The 46235 series crimp contacts are RMF (Reduced Mating Force) contacts which have a reduced engagement and disengagement force for ease of use. These Micro-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility

Features and Benefits

• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility

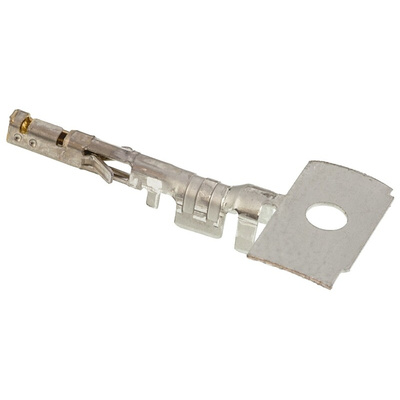

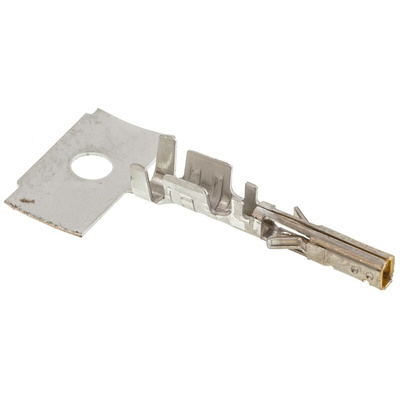

Molex Micro-Fit 3.0 Female Crimp Terminal, 20 to 24AWG, 10mΩ - 43030 Series - 43030-0002

This female crimp terminal from Molex provides a secure connection for your electrical current applications. It connects wires sized between 20 and 24AWG (American Wire Gauge) or joins a wire to a PCB (printed circuit board). When fully mated, the multiple points of contact on the terminal design provide a full 8.5A (amps) of current capacity. The phosphor-bronze material has high impact-fatigue resistance to ensure the terminal doesn't lose its effectiveness over time.

Features & Benefits

• Broad working temperature range of -40°C to +105°C for use in demanding industrial environments
• Locking tangs ensure a firm grip to prevent accidental disconnections due to mishandling or vibration
• Gold contact plating to resist build-ups of rust and corrosion
• Crimp termination method compresses over the wire to isolate connection from electrical interference

Applications

• Medical industry
• Data and communications networking
• Automotive industry
• Industrial automation

What can this crimp terminal mate with?

This crimp terminal mates with 3.0, BMI panel mount or TPA receptacle housings from the Micro-Fit range, giving you flexibility when designing your setup.

Molex Micro-Fit 3.0 Series

Datasheet

Datasheet

Line Drawing - 43030-0002

Specification Sheet - Micro-Fit Dual Row Connector System
