43031-0003, Molex Micro-Fit 3.0 Series Male Crimp Terminal, 24AWG Min, 20AWG Max, Контакты

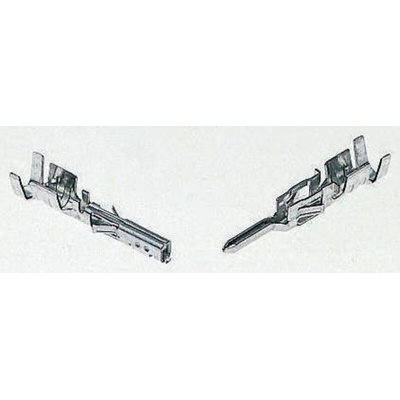

Molex Micro-Fit 3.0 mm Crimp Contacts

Pin and receptacle crimp contacts for use in the Micro-Fit 3.0 mm plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. The 46235 series crimp contacts are RMF (Reduced Mating Force) contacts which have a reduced engagement and disengagement force for ease of use. These Micro-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility

Features and Benefits

• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility

Molex Crimp Terminal, Gold Contact Plating, Accommodates 24 to 20AWG - Micro-Fit 3.0 Series - 43031-0009

Mount your connectors safely and reliably to a PCB with this male crimp terminal from Molex. It's designed for use with the Micro-Fit 3.0mm plug and connector housings (such as 233-2753) to give you a reliable electrical connection. A locking tang on the crimp contacts ensures it stays put, even in vibrating applications. For versatility, this terminal accepts wire sizes from 24 to 20AWG.

Features & Benefits

• Multiple points of contact achieve an electrical connection you can rely on
• Gold-plated phosphor bronze contact material offers high conductivity to faithfully relay your signal
• Weight of just 0.42g helps you build a lightweight system

Applications

• Computer networking
• Automotive sector
• Consumer electronics

How do I fit a crimp terminal?

Simply strip the end of your wire and insert it into the crimp terminal. Using a correctly sized crimping tool, squeeze down to compress the metal of the terminal until it grips the wire tightly.

Molex Micro-Fit 3.0 Series
