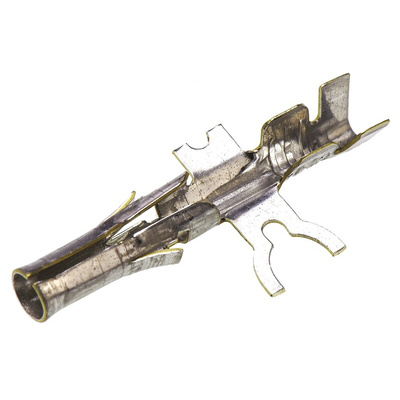

02-09-1117, Molex STANDARD .093" Series Female Crimp Terminal, 22AWG Min, 18AWG Max, Контакты

Molex 2.36mm Diameter Pin and Receptacle Crimp Terminals

2.36mm diameter pin and receptacle crimp terminals with an industry standard size which allows them to be used in the 5.03mm pitch Standard .093" and 6.71mm pitch 3191 series connector housings. These crimp terminals can be used in either plug or receptacle housings for design flexibility and are available with a tin or gold plating and a range of wire sizes.

Application:

• Consumer Electronics
• Communications
• Networking
• Portable Devices

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex Crimp Terminal, Female, 22 to 18AWG - STANDARD .093" Series - 02-09-1119

Features & Benefits

• Brass contacts with a low contact resistance of 10 milliohms for a stable connection
• Wide operating temperature range of -40°C to +105°C for use in demanding conditions
• Terminal retention force of 89N for a secure hold in vibrating systems

Applications

• Networking devices
• Consumer electrronics

How do I terminate conductors to this crimp terminal?

You can terminate conductors to this terminal by inserting them into the pin and securing the link with a simple hand crimping tool.

Molex 2.36mm Diameter Standard .093" Pin and Socket Range

Datasheet
